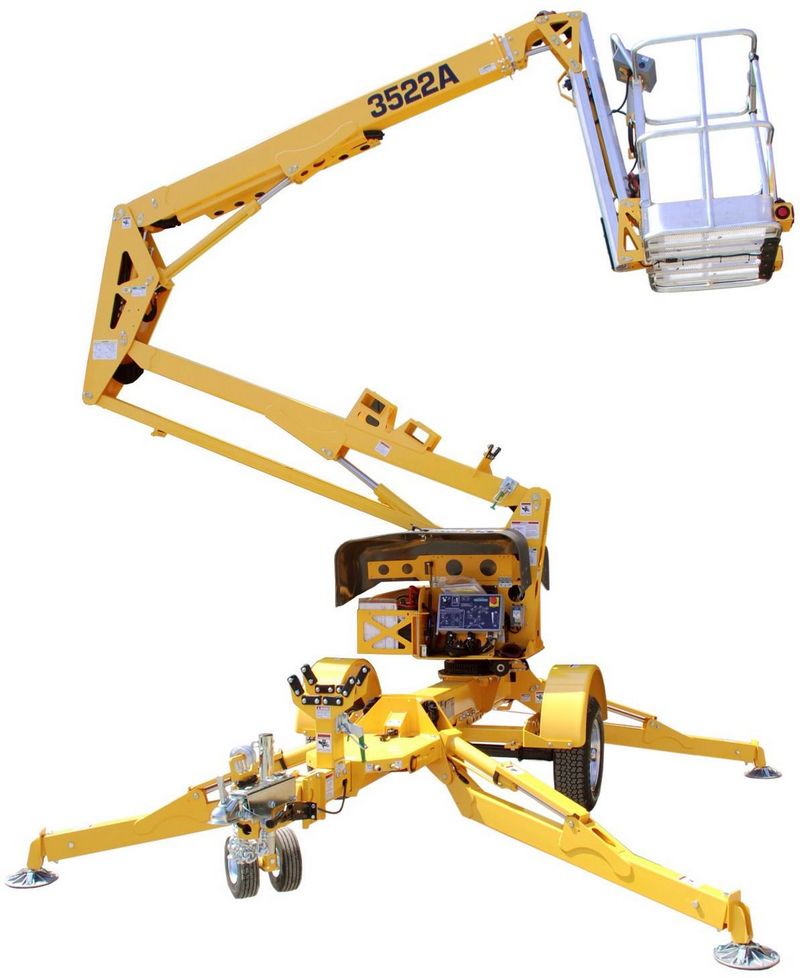

Haulotte 3522 A
Contents:
Dimensions
| Overall Length | 195.6 in (4968.24 mm) |
| Overall Width | 5.6 ft in (1706.88 mm) |
| Overall Height - Mast Lowered | 6.8 ft in (2072.64 mm) |
| Up And Over Height | 19 ft in (5.8 m) |
| Lift Capacity To Full Height | 500 lb (226.8 kg) |
Platform
| Max Platform Height | 35.9 ft in (10942.32 mm) |
| Max Horizontal Reach | 22.6 ft in (6888.48 mm) |
| Max Working Height | 41.9 ft in (12771.12 mm) |
| Jib Range Of Motion - Vertical | 150 degrees |
| Jib Length | 4.3 ft in (1.32 m) |
| Platform Size | 2.9 ft in (883.92 mm) |
Engine
| System Voltage | 6 V |
| Number Of Batteries | 4 |
| Charger Amps | 245 amps |
Operational
| Widest Point | 11.1 ft in (3383.3 mm) |
| Leveling Capability | 12.5 degrees |
| Turntable Rotation | 350 degrees |
| Operating Weight | 3400 lb (1542.3 kg) |
| Max Speed | 65 mph (104.7 km/h) |
| Tire Size | ST 225/75 D15 |
