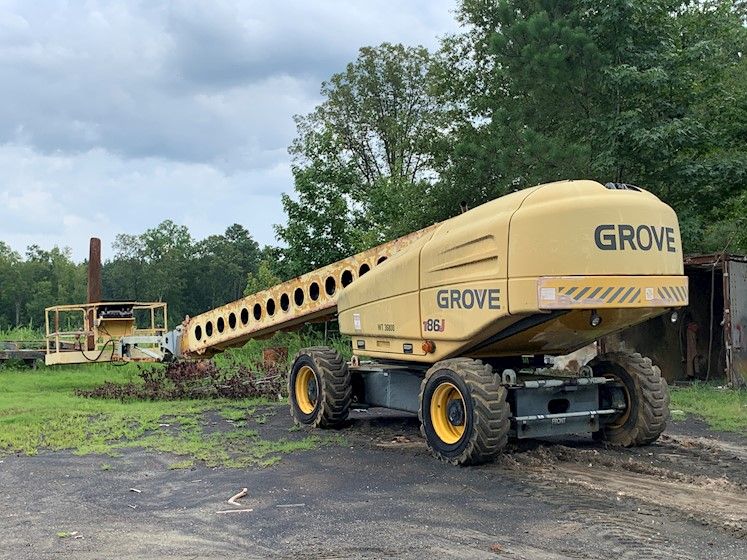

Grove T86J
Contents:
Dimensions
| Overall Length | 40.03 in (12200 mm) |
| Overall Width | 8.5 ft in (2590 mm) |
| Overall Height - Mast Lowered | 9.52 ft in (2900 mm) |
| Wheelbase | 9.85 ft in (3000 mm) |
| Ground Clearance | 12 in (304.8 mm) |
| Turning Radius | 15.06 ft in (4590 mm) |
Platform
| Max Platform Height | 80.71 ft in (24600 mm) |
| Max Horizontal Reach | 75.99 ft in (23160 mm) |
| Platform Inner Length | 93.71 in (2380 mm) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Max Working Height | 91.87 ft in (28000 mm) |
| Platform Inner Width | 35.83 in (910 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | Diesel |
| Gross Power | 85 hp (63.4 kw) |
| Fuel Type | diesel |
Operational
| Operating Weight | 33999.7 lb (15422 kg) |
| Fuel Capacity | 35 gal (132.4 L) |
| Hydraulic System Fluid Capacity | 45 gal (170.3 L) |
| Max Speed | 4.1 mph (6.5 km/h) |
| Tire Size | 385/65D22.5 |
| Tire Fill/Type | Pneumatic |
