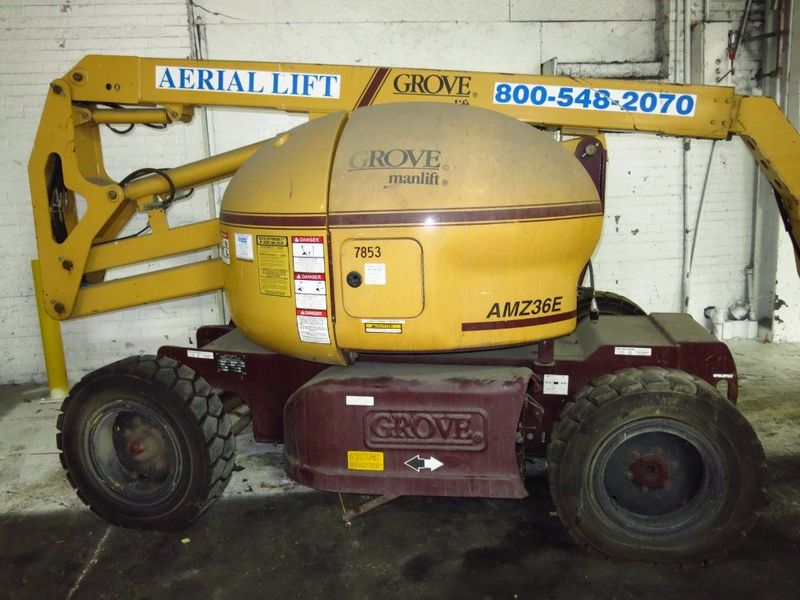

Grove AMZ36E
Contents:
Dimensions
| Overall Length | 16.41 in (5000 mm) |
| Overall Width | 5.75 ft in (1750 mm) |
| Overall Height - Mast Lowered | 6.57 ft in (2000 mm) |
| Wheelbase | 6.34 ft in (1930 mm) |
| Ground Clearance | 5.91 in (150 mm) |
Platform
| Max Platform Height | 30.84 ft in (9400 mm) |
| Max Horizontal Reach | 20.51 ft in (6250 mm) |
| Max Working Height | 36.85 ft in (11230 mm) |
| Platform Inner Length | 48.04 in (1220 mm) |
| Platform Inner Width | 29.93 in (760 mm) |
| Max Platform Weight Capacity | 227 lb (102.97 kg) |
Engine
| System Voltage | 48 V |
| Number Of Batteries | 2 |
| Battery Amp Hours | 370 |
| Charger Amps | 21 amps |
Operational
| Operating Weight | 10200.8 lb (4627 kg) |
| Hydraulic System Fluid Capacity | 5 gal (18.9 L) |
| Max Speed | 3 mph (4.8 km/h) |
| Tire Size | 7x15 NHS 12PR |
| Tire Fill/Type | Air |
