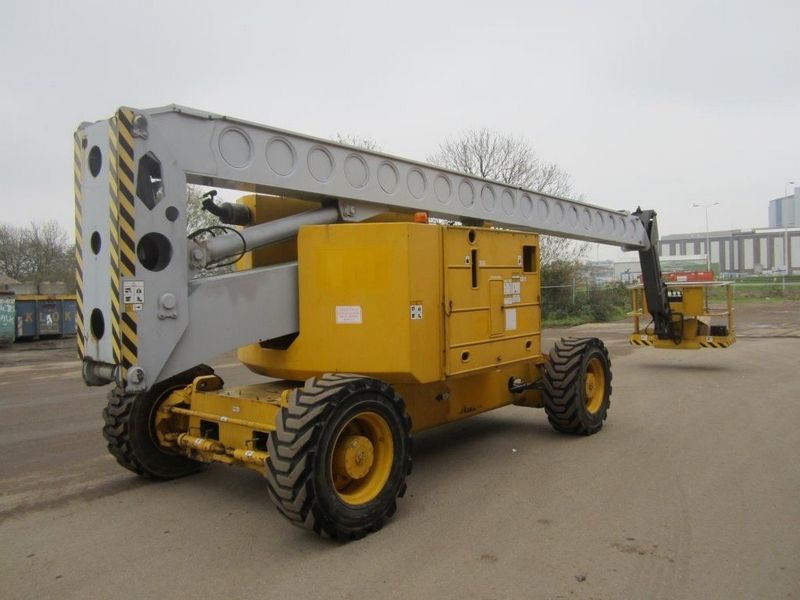

Grove A80J
Contents:
Dimensions
| Overall Length | 36.52 in (11130 mm) |
| Overall Width | 8.01 ft in (2440 mm) |
| Overall Height - Mast Lowered | 9.68 ft in (2950 mm) |
| Turning Radius | 8.83 ft in (2690 mm) |
Platform
| Max Platform Height | 79.99 ft in (24380 mm) |
| Max Horizontal Reach | 64.51 ft in (19660 mm) |
| Max Working Height | 86 ft in (26210 mm) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Platform Inner Length | 94.49 in (2400 mm) |
| Platform Inner Width | 35.83 in (910 mm) |
Engine
| Engine Model | Diesel |
| Fuel Type | Dual Fuel |
Operational
| Operating Weight | 42802.8 lb (19415 kg) |
| Max Speed | 2.5 mph (4 km/h) |
