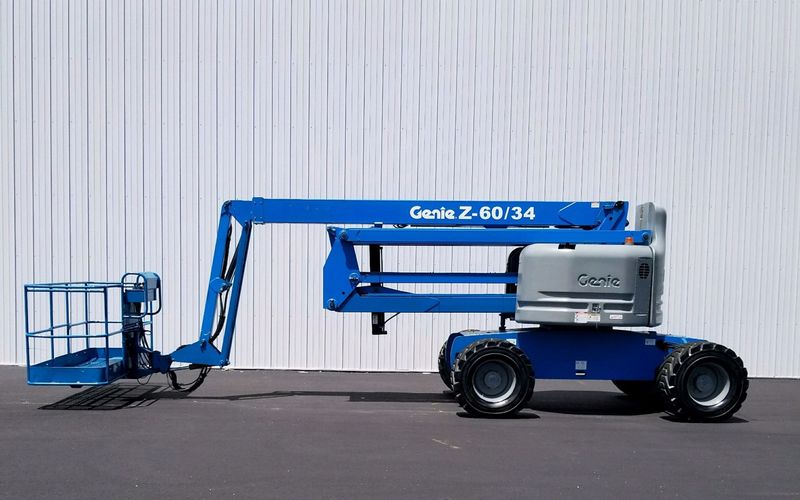

Genie Z60/34
Contents:
Dimensions
| Overall Length | 23.46 in (7150 mm) |
| Overall Width | 8.08 ft in (2460 mm) |
| Overall Height - Mast Lowered | 8.83 ft in (2690 mm) |
| Wheelbase | 8.24 ft in (2510 mm) |
| Ground Clearance | 16.15 in (410 mm) |
| Turning Radius | 19.92 ft in (6070 mm) |
Platform
| Max Platform Height | 60.34 ft in (18390 mm) |
| Max Horizontal Reach | 36.26 ft in (11050 mm) |
| Platform Rotation | 180 degrees |
| Platform Inner Length | 72.05 in (1830 mm) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Max Working Height | 66.9 ft in (20390 mm) |
| Platform Inner Width | 29.93 in (760 mm) |
Engine
| Engine Make | 2380 |
| Engine Model | DSG-423 |
| Gross Power | 75 hp (56 kw) |
Operational
| Operating Weight | 22520.3 lb (10215 kg) |
| Fuel Capacity | 20 gal (75.7 L) |
| Hydraulic System Fluid Capacity | 45 gal (170.3 L) |
| Max Speed | 3 mph (4.8 km/h) |
| Tire Size | 385/65 D19.5 12PLY |
