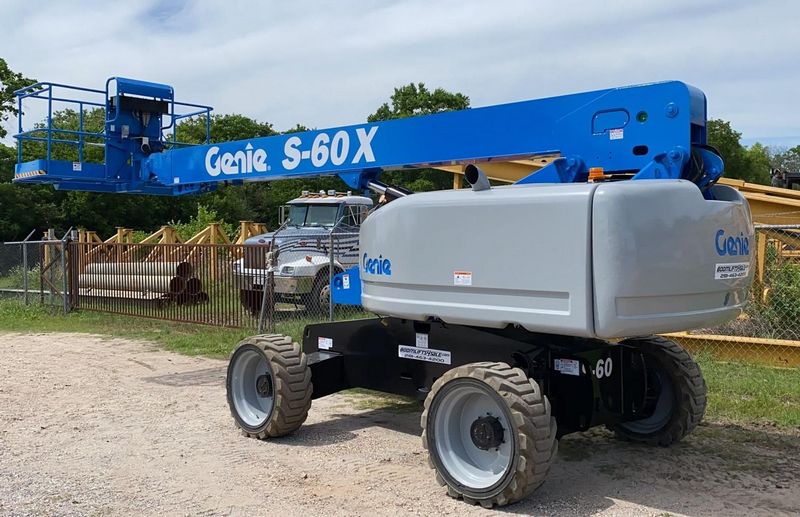

Genie S-60X
Contents:
Dimensions
| Overall Length | 333.08 in (8460 mm) |
| Overall Width | 8.2 ft in (2499.36 mm) |
| Wheelbase | 8.31 ft in (2529.84 mm) |
| Ground Clearance | 16.93 in (430 mm) |
| Weight - 2wd | 20571.34 lb (9331 kg) |
| Weight - 4wd | 20741.09 lb (9408 kg) |
| Overall Height | 9.1 ft in (2773.68 mm) |
Platform
| Platform Inner Length | 35.83 in (910 mm) |
| Platform Inner Width | 96.07 in (2440 mm) |
| Platform Rotation | 160 degrees |
Engine
| Power | 49 hp (36.54 kW) Deutz diesel T4f D2.9L4 |
| Engine Model | S-60X |
Capacities
| Auxiliary Power Unit | 12 V DC |
| Fuel Tank - Gas | 30 gal (113.6 L) |
| Fuel Tank - Diesel | 35 gal (132.5 L) |
| Hydraulic Tank | 45 gal (170.4 L) |
| Lift Capacities | 500.5 lb (227 kg) |
Operational
| Controls | 12 V DC proportional |
| Turning Radius - Axle Outside | 18.1 ft in (5.5 m) |
| Turning Radius - Axle Inside | 7.8 ft in (2.4 m) |
| Drive Speed - Stowed | 2.7 mph (4.4 km/h) |
| Drive Speed - Raised | 0.7 mph (1.1 km/h) |
| Horizontal Reach - Maximum | 50.8 ft in (15.5 m) |
| Below Ground Reach | 5.6 ft in (1.7 m) |
| Working Height - Maximum | 65 ft in (19.8 m) |
| Platform Height - Maximum | 58.4 ft in (17.8 m) |
| Tires | 355/55D 625 |
