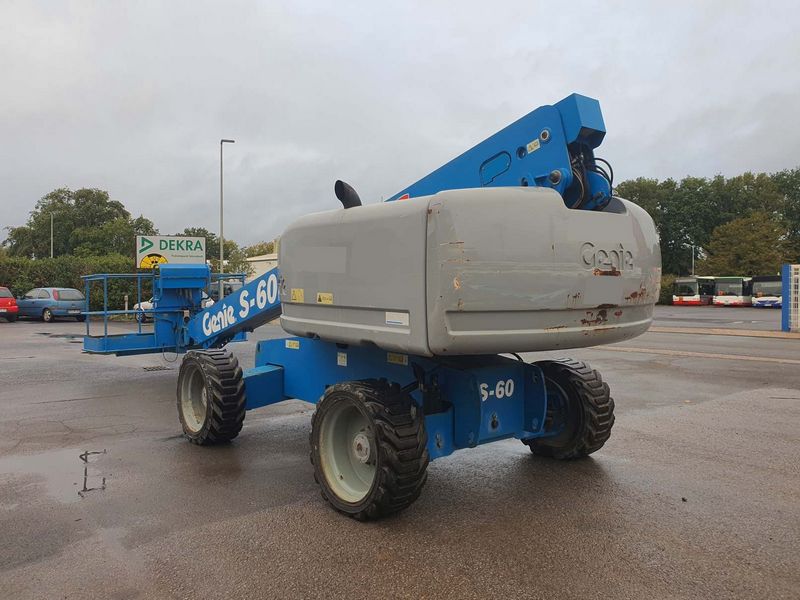

Genie S60HC
Contents:
Dimensions
| Overall Length | 27.92 in (8510 mm) |
| Overall Width | 8.17 ft in (2490 mm) |
| Overall Height - Mast Lowered | 8.93 ft in (2720 mm) |
| Wheelbase | 8.21 ft in (2500 mm) |
| Ground Clearance | 1.46 in (37 mm) |
| Turning Radius | 18.18 ft in (5540 mm) |
Platform
| Max Platform Height | 58.34 ft in (17780 mm) |
| Max Horizontal Reach | 38.92 ft in (11860 mm) |
| Platform Rotation | 160 degrees |
| Platform Inner Length | 96.07 in (2440 mm) |
| Max Platform Weight Capacity | 1250.03 lb (567 kg) |
| Max Working Height | 64.9 ft in (19780 mm) |
| Platform Inner Width | 35.83 in (910 mm) |
Engine
| Engine Make | 2380 |
| Engine Model | DSG 423 |
| Gross Power | 75 hp (56 kw) |
| Fuel Type | Gas/LPG |
Operational
| Operating Weight | 22207.2 lb (10073 kg) |
| Fuel Capacity | 34.9 gal (132 L) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
| Max Speed | 3 mph (4.8 km/h) |
| Tire Size | 355/55D 625 |
