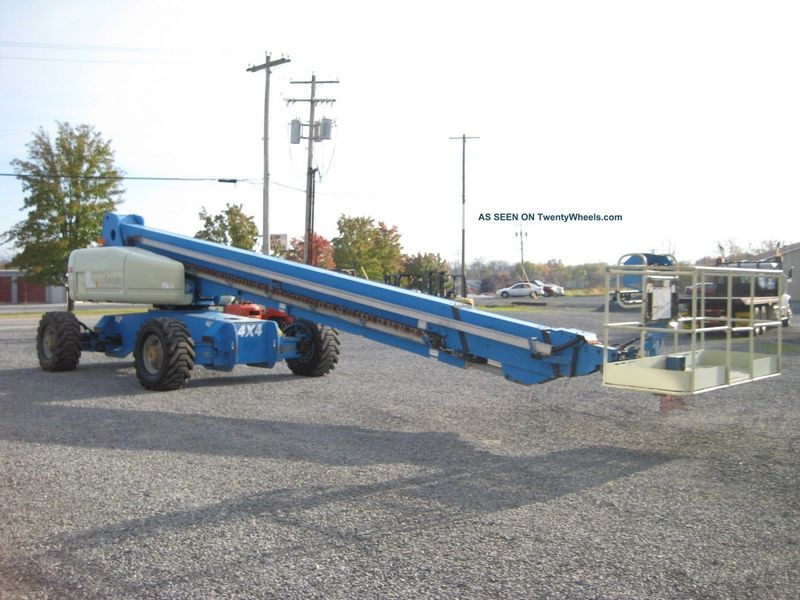

Genie S120
Contents:
Dimensions
| Overall Length | 42.66 in (13000 mm) |
| Overall Width | 8.17 ft in (2490 mm) |
| Overall Height - Mast Lowered | 10.08 ft in (3070 mm) |
| Wheelbase | 12.01 ft in (3660 mm) |
| Ground Clearance | 1.74 in (44 mm) |
| Turning Radius | 22.15 ft in (6750 mm) |
Platform
| Max Platform Height | 120.02 ft in (36580 mm) |
| Max Horizontal Reach | 75 ft in (22860 mm) |
| Platform Rotation | 160 degrees |
| Platform Inner Length | 96.07 in (2440 mm) |
| Max Platform Weight Capacity | 749.58 lb (340 kg) |
| Max Working Height | 126.58 ft in (38580 mm) |
| Platform Inner Width | 35.83 in (910 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | TD2011 L04i |
| Gross Power | 74 hp (55.2 kw) |
| Fuel Type | diesel |
Operational
| Operating Weight | 44339.4 lb (20112 kg) |
| Fuel Capacity | 39.9 gal (151 L) |
| Hydraulic System Fluid Capacity | 55 gal (208 L) |
| Max Speed | 3 mph (4.8 km/h) |
| Tire Size | 445/65D22.5 |
