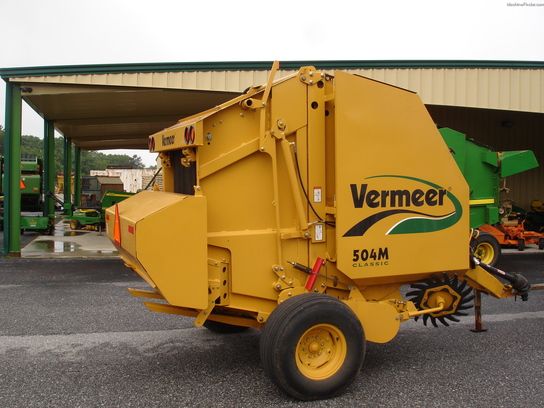

Vermeer 504M Classic
Contents:
Baler Pickup
| Overall Width | 4.89 ft in (1.49 m) |
| Number Of Bars | 5 |
| Number Of Tines | 40 |
| Tine To Tine Width | 3.61 ft in (1.11 m) |
| Lift Type | manual |
Dimensions
| Overall Length | 12.83 ft in (3910 mm) |
| Overall Width | 7.91 ft in (2410 mm) |
| Overall Height | 8.6 ft in (2620 mm) |
| Tractor Pto Power Required | 45 hp (33.56 kw) |
| Weight | 5119.14 lb (2322 kg) |
Bale Size
| Bale Width | 4 ft in (1190 mm) |
| Bale Diameter - Min | 3 ft in (910 mm) |
| Bale Diameter - Max | 5 ft in (1520 mm) |
| Bale Weight - Max | 1999.6 lb (907 kg) |
Bale Chamber
| Number Of Belts | 6 |
| Belt Width | 6.7 in (17 cm) |
Wrapping System
| Twine Type | automatic twine tie |
| Twine Ball Capacity | 4 |
