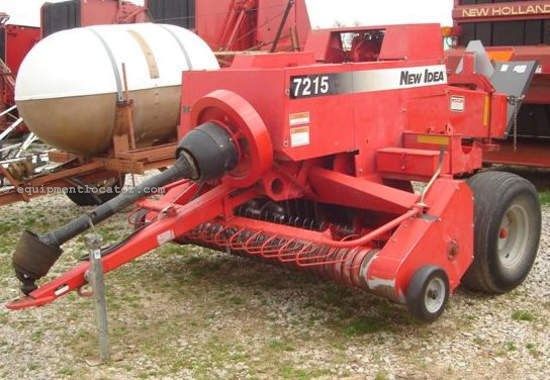

New Idea 7215
Contents:
Baler Pickup
| Overall Width | 7.43 ft in (2.27 m) |
| Number Of Tines | 56, Double Tines |
| Tine To Tine Width | 5.85 ft in (1.79 m) |
| Number Of Bars | 4 |
Dimensions
| Overall Length | 17.01 ft in (5182 mm) |
| Overall Width | 8.42 ft in (2565 mm) |
| Overall Height | 5.42 ft in (1651 mm) |
| Tractor Pto Power Required | 35 hp (26.1 kw) |
| Weight | 3300.32 lb (1497 kg) |
Bale Size
| Bale Length - Min | 1.1 ft in (305 mm) |
| Bale Height | 1.5 ft in (457 mm) |
| Bale Width | 1.2 ft in (356 mm) |
| Bale Length - Max | 4.4 ft in (1321 mm) |
Feeding Chamber
| Stuffer Type | Crank Type w/ 4 Tines |
Plunger
| Spm | 100 |
| Stroke Length | 21.7 in. |
| Density Control | Spring Loaded Density Control Rails |
| Bearing Type | Sealed Ball Bearing Rollers |
Wrapping System
| Twine Type | Conventional Twine Tie |
| Twine Ball Capacity | 6 |
| Wire Coil Capacity | 4 |
