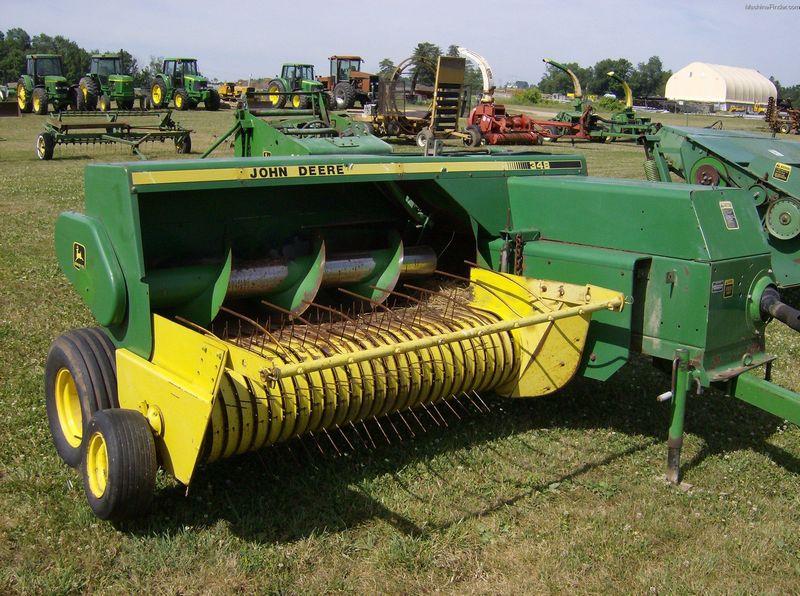

John Deere 348
Browse All John Deere or Baler Models
Contents:
Baler Pickup
| Overall Width | 6.17 ft in (1.88 m) |
| Number Of Bars | 6 |
| Number Of Tines | 156 |
| Tine To Tine Width | 5.25 ft in (1.6 m) |
| Lift Type | crank |
Dimensions
| Overall Length | 18.92 ft in (5765 mm) |
| Overall Width | 9 ft in (2743 mm) |
| Overall Height | 5.59 ft in (1702 mm) |
| Tractor Pto Power Required | 35 hp (26.1 kw) |
| Weight | 3110.73 lb (1411 kg) |
Bale Size
| Bale Length - Min | 1.1 ft in (305 mm) |
| Bale Height | 1.2 ft in (360 mm) |
| Bale Width | 1.6 ft in (460 mm) |
| Bale Length - Max | 4.2 ft in (1270 mm) |
Feeding Chamber
| Feed Opening | 294.6 in2 (0.2 m2) |
Plunger
| Spm | 93 |
| Stroke Length | 76.2cm |
| Bearing Type | sealed ball-bearing rollers |
Wrapping System
| Twine Type | plastic or sisal |
| Twine Ball Capacity | 8 |
| Wire Coil Capacity | 4 |
