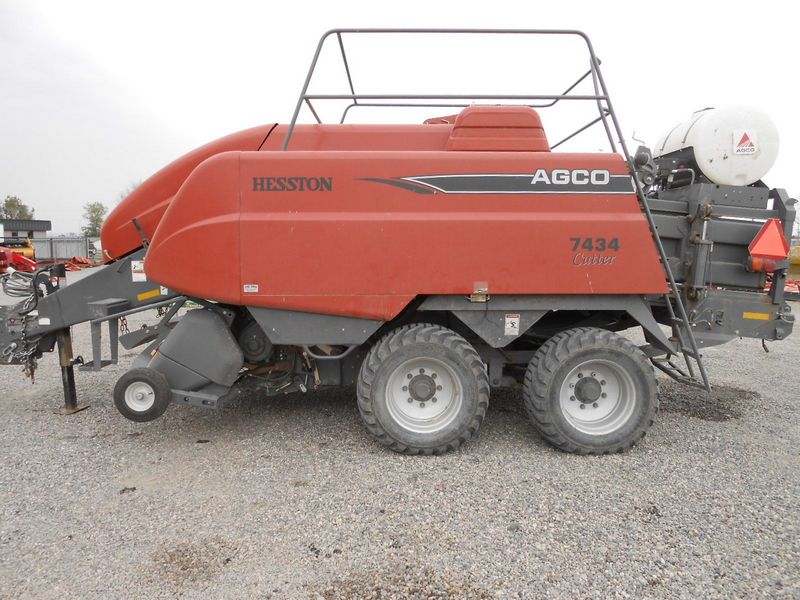

Hesston 7434
Contents:
Baler Pickup
| Overall Width | 9.83 ft in (3 m) |
| Number Of Tines | 128 |
| Tine To Tine Width | 6.72 ft in (2.05 m) |
| Lift Type | hydraulic cylinder |
Dimensions
| Overall Length | 25.1 ft in (7650 mm) |
| Overall Width | 10.77 ft in (3280 mm) |
| Overall Height | 10.86 ft in (3310 mm) |
| Tractor Pto Power Required | 120 hp (89.49 kw) |
| Weight | 20057.66 lb (9098 kg) |
Bale Size
| Bale Length - Min | 9 ft in (2743 mm) |
| Bale Height | 2.9 ft in (875 mm) |
| Bale Width | 4 ft in (1200 mm) |
Feeding Chamber
| Packer Type | fork type w/6 hard surfaced tines |
| Stuffer Type | fork type |
Plunger
| Bearing Type | 2 ball bearing rollers |
Wrapping System
| Twine Type | six double knot type |
| Twine Ball Capacity | 30 |
