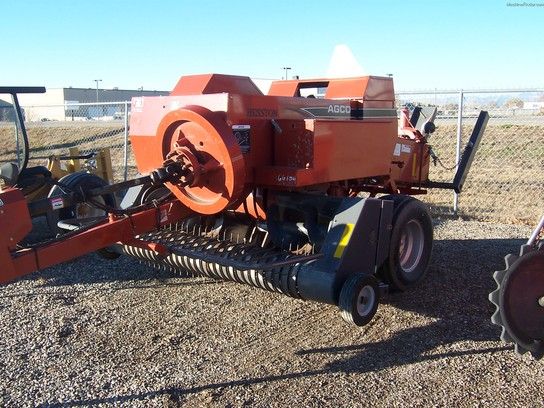

Hesston 7120
Contents:
Baler Pickup
| Overall Width | 7.6 ft in (2.32 m) |
| Number Of Tines | 112 |
| Tine To Tine Width | 5.85 ft in (1.79 m) |
| Number Of Bars | 4 |
Dimensions
| Overall Length | 16.81 ft in (5121 mm) |
| Overall Width | 8.71 ft in (2652 mm) |
| Overall Height | 5.5 ft in (1676 mm) |
| Tractor Pto Power Required | 50 hp (37.29 kw) |
| Weight | 4376.18 lb (1985 kg) |
Bale Size
| Bale Length - Min | 4.4 ft in (1321 mm) |
| Bale Height | 1.5 ft in (457 mm) |
| Bale Width | 1.4 ft in (406 mm) |
Feeding Chamber
| Stuffer Type | crank type cam controlled w/3 tines |
Plunger
| Spm | 100 |
| Stroke Length | 584mm |
| Bearing Type | 8 sealed ball bearing rollers |
Wrapping System
| Twine Type | knotters |
| Twine Ball Capacity | 6 |
