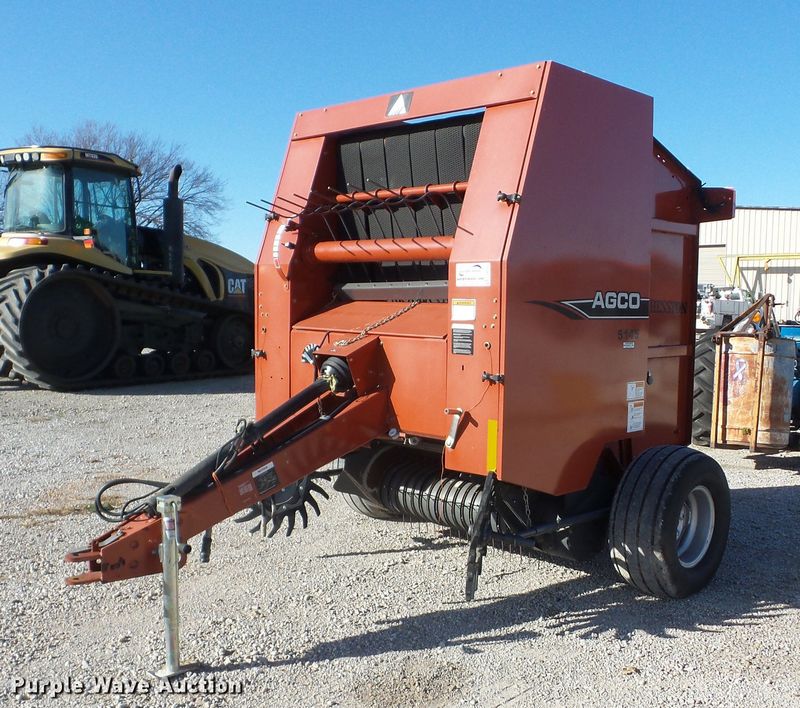

Hesston 5145
Contents:
Baler Pickup
| Overall Width | 5.42 ft in (1.66 m) |
| Number Of Tines | 72 |
| Tine To Tine Width | 3.69 ft in (1.13 m) |
| Number Of Bars | 4 |
Dimensions
| Overall Length | 12.26 ft in (3734 mm) |
| Overall Width | 7.71 ft in (2350 mm) |
| Overall Height | 8.42 ft in (2565 mm) |
| Tractor Pto Power Required | 40 hp (29.83 kw) |
| Weight | 3719.2 lb (1687 kg) |
Bale Size
| Bale Width | 3.9 ft in (1182 mm) |
| Bale Diameter - Min | 2.5 ft in (762 mm) |
| Bale Diameter - Max | 5.2 ft in (1575 mm) |
| Bale Weight - Min | 1250.1 lb (567 kg) |
Bale Chamber
| Number Of Belts | 6 |
| Belt Width | 7.1 in (17.8 cm) |
Wrapping System
| Twine Type | electric actuated |
| Twine Ball Capacity | 4 |
