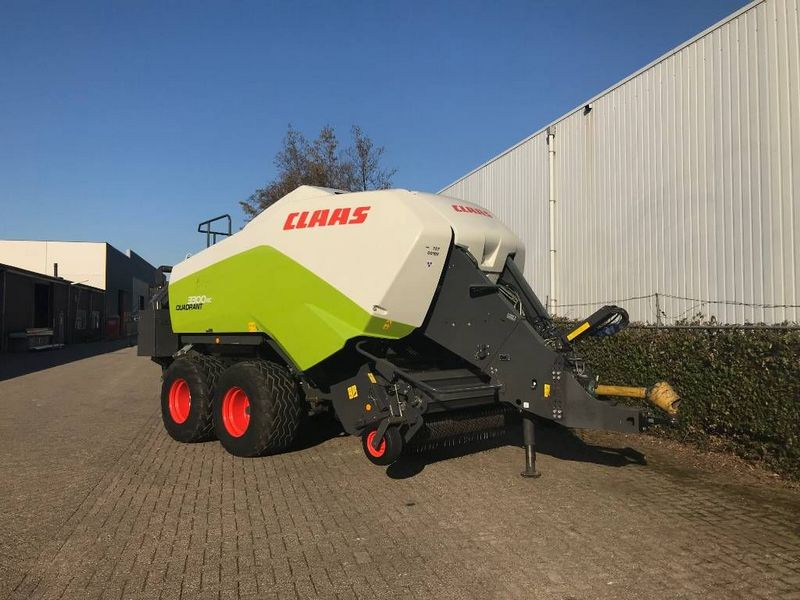

Claas QUADRANT 3300 RC
Contents:
Baler Pickup
| Overall Width | 0.78 ft in (0.24 m) |
| Tine To Tine Width | 6.24 ft in (1.9 m) |
| Number Of Bars | 6 |
Dimensions
| Overall Length | 26.58 ft in (8100 mm) |
| Overall Width | 9.75 ft in (2970 mm) |
| Overall Height | 11.23 ft in (3420 mm) |
| Weight | 23942.21 lb (10860 kg) |
Bale Size
| Bale Height | 3 ft in (901.7 mm) |
| Bale Width | 4 ft in (1219.2 mm) |
| Bale Length - Max | 10 ft in (3048 mm) |
| Baler Pto Speed | 1000 rpm |
Feeding Chamber
| Packer Type | 2-phase cycle |
Plunger
| Spm | 51 |
