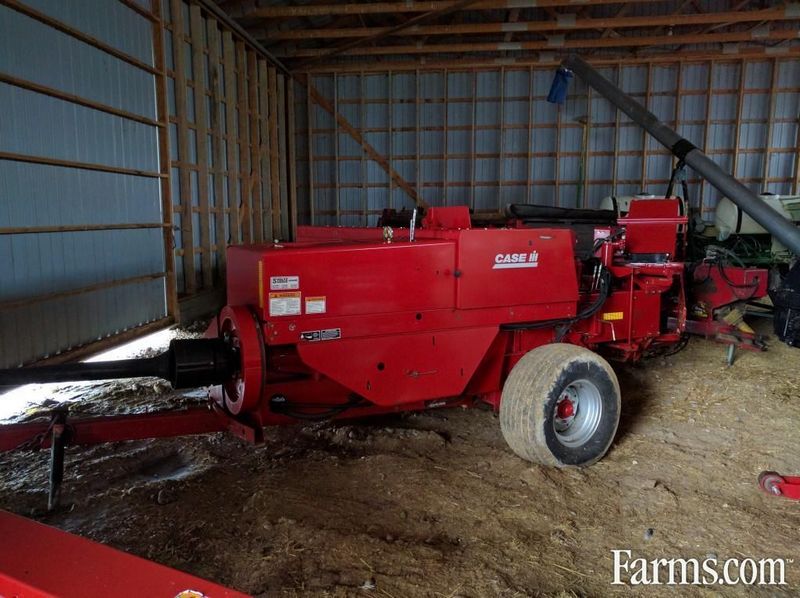

Case IH SBX540
Contents:
Baler Pickup
| Lift Type | manual lift crank |
| Number Of Bars | 6 |
| Number Of Tines | 156 |
| Tine To Tine Width | 6.25 ft in (1.91 m) |
Dimensions
| Overall Length | 20.5 ft in (6248.4 mm) |
| Overall Width | 10 ft in (3048 mm) |
| Overall Height | 5.75 ft in (1752.6 mm) |
| Tractor Pto Power Required | 75 hp (55.93 kw) |
| Weight | 3570 lb (1619.33 kg) |
Bale Size
| Bale Length - Min | 1 ft in (304.8 mm) |
| Bale Height | 1.5 ft in (457 mm) |
| Bale Width | 1.2 ft in (356 mm) |
| Bale Length - Max | 4.3 ft in (1295.4 mm) |
Feeding Chamber
| Packer Type | fork with 3 paired rotating fingers |
| Feed Opening | 283 in2 (0.2 m2) |
Plunger
| Spm | 93 |
| Stroke Length | 30in |
| Density Control | springs |
| Bearing Type | 5 sealed ball |
Wrapping System
| Twine Type | twine knotter |
| Twine Ball Capacity | 6 |
| Wire Coil Capacity | 4 |
