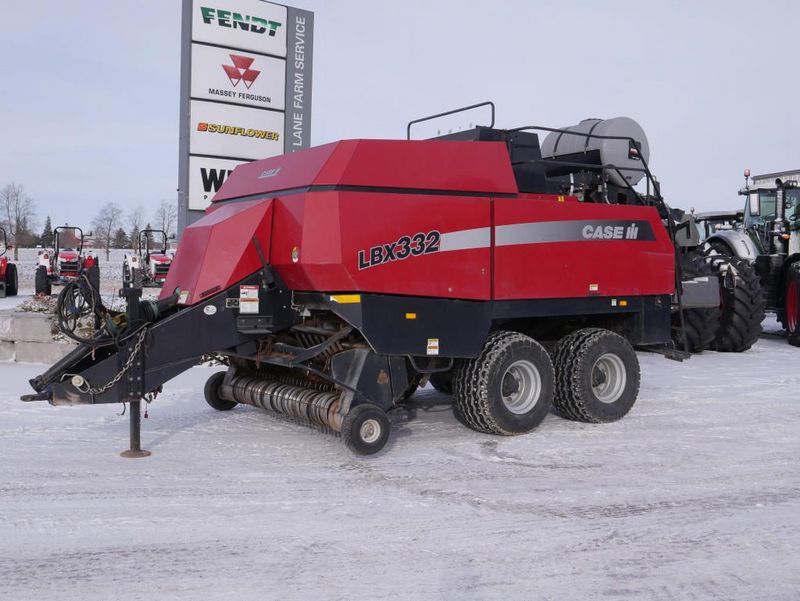

Case IH LBX332 Standard
Contents:
Baler Pickup
| Lift Type | hydraulic |
| Number Of Bars | 4 |
| Number Of Tines | 56 |
| Tine To Tine Width | 5.75 ft in (1.76 m) |
Dimensions
| Overall Length | 27.75 ft in (8458.21 mm) |
| Overall Width | 8.42 ft in (2566.42 mm) |
| Overall Height | 10 ft in (3048 mm) |
| Tractor Pto Power Required | 102 hp (76.07 kw) |
| Weight | 15983 lb (7249.77 kg) |
Bale Size
| Bale Length - Min | 3.8 ft in (1143 mm) |
| Bale Height | 2.8 ft in (838.2 mm) |
| Bale Width | 2.6 ft in (786.4 mm) |
| Bale Length - Max | 9 ft in (2743.2 mm) |
Feeding Chamber
| Packer Type | 2 forks, 4 single tines |
| Stuffer Type | 4-tine |
Plunger
| Spm | 42 |
| Stroke Length | 28in |
| Density Control | hydraulic |
| Bearing Type | 4 vertical, 2 horizontal roller |
Wrapping System
| Twine Type | 4 double knotter |
| Twine Ball Capacity | 30 |
