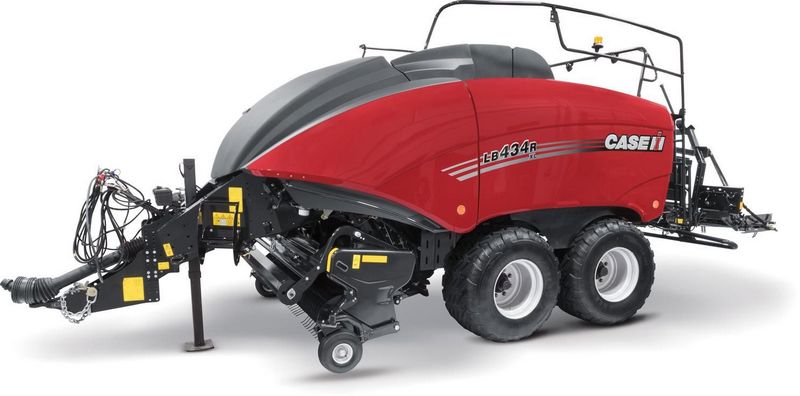

Case IH LB 4334 STANDARD
Contents:
Baler Pickup
| Number Of Tines | 64 double (128) |
| Outer Tine-To-Tine Width | 80.56 in (2046 mm) |
| Pickup Working Width | 87.88 in (2232 mm) |
| Tine Spacing | 2.6 in (66 mm) |
| Gauge Wheels | Two 15x6.00-6 4PR |
| Number Of Tine Bars | 4 |
| Number Of Tine Rows | 4 |
Dimensions
| Tractor Pto Power Required | 124.72 hp (93 kw) |
| Height Tandem Axle | 123.35 in (3133 mm) |
| Height, Single Axle | 123.35 in (3133 mm) |
| Length With Bale Chute Folded | 294.38 in (7477 mm) |
| Baler Width | 116.07 in (2948 mm) |
Knotters
| Knotters Type | Double knot |
| Number Of Knotters | 6 |
| Twine Ball Storage Quantity | 32 |
Maindrive
| Main Drive Protection | Shearbolt, overrunning clutch & slip clutch |
Sales Literature
| Literature Number | CIH07211201 |
| Literature Date | July, 2012 |
| Document Number | HF-5138-12 |
| Document Date | July, 2012 |
Years Of Manufacture
| Manufacturing Status | Current |
| First Entry Date | August,2012 |
| Revision Date | July, 2016 |
Engine
| Pto Speed | 1000 rpm |
| Number Of Remote Hydraulic Valves | 2 |
Bale Size
| Bale Height | 35.5 in (900 mm) |
| Bale Width | 47.3 in (1200 mm) |
| Bale Length - Max | 108 in (2743 mm) |
Feeding
| Feeder Description | 3 packer forks, 9 single tines |
| Stuffer Description | Fork,6 tines |
Weights
| Weight Single Axle | 20282.6 lb (9200 kg) |
Tires
| Tire Size Single Axle | 700/40 R22.5 |
Weights
| Weight Tandem Axle | 21605.4 lb (9800 kg) |
Tires
| Tire Size Tandem Axle | 550/45 R22.5 up to 620/50 R22.5 |
Plunger
| Density Control | 3-way monitor control |
| Plunger Speed (Strokes/Min) | 48 |
| Plunger Stroke | 28 in (710 mm) |
