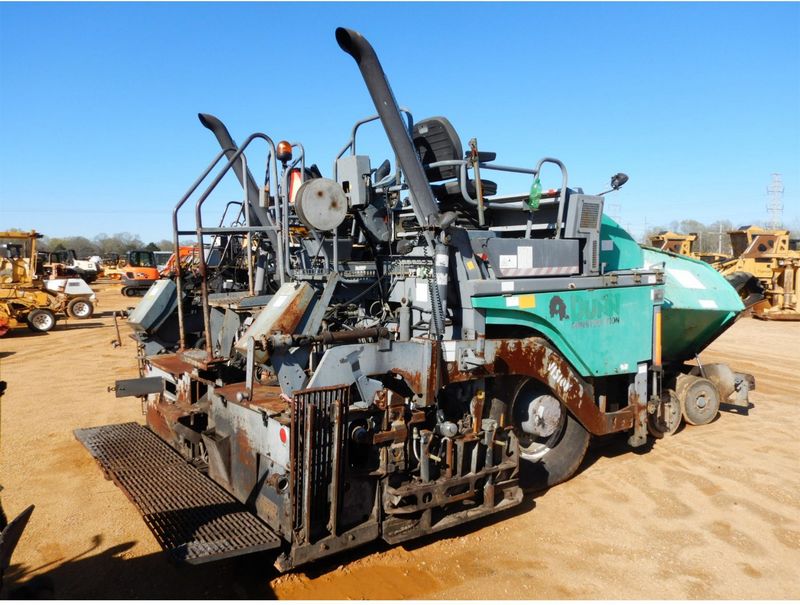

Vogele Vision 5203-2
Browse All Vogele or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 21.83 ft in (6653.79 mm) |
| Transport Height | 9.17 ft in (2795.02 mm) |
| Wheelbase | 8.08 ft in (2462.79 mm) |
| Length W/O Screed | 16.58 ft in (5053.59 mm) |
| Tire Size | 18.00x25 |
| Width W/ Hopper Open | 10.75 ft in (3276.6 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB 6.7 C240 |
| Gross Power | 240 hp (179 kw) |
| Power Measured @ | 2000 rpm |
Operational
| Operating Weight W/O Screed | 32400 lb (14696.4 kg) |
| Operating Weight W/ Screed | 40500 lb (18370.5 kg) |
| Fuel Capacity | 106 gal (401.3 L) |
| Operating Voltage | 24 V |
Hopper/Paver
| Hopper Capacity | 8.9 lb (6.8 kg) |
| Paving Width - Std | 10 ft in (3048 mm) |
| Paving Width - Max | 25.5 ft in (7772.4 mm) |
| Paving Thickness - Max | 12 in (304.8 mm) |
| Paving Speed - Max | 250 ft/min (76.2 m/min) |
| Travel Speed - Max | 12 mph (19.4 km/h) |
| Auger Diameter | 16 in (406.4 mm) |
