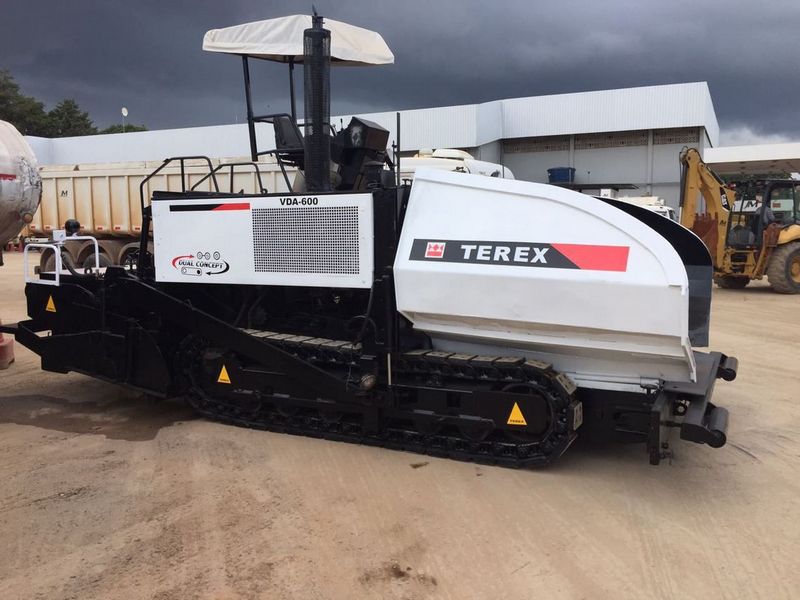

Terex VDA 600
Browse All Terex or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 20.65 ft in (6294 mm) |
| Transport Width | 8.54 ft in (2600 mm) |
| Transport Height | 10.5 ft in (3200 mm) |
| Length Of Track On Ground | 8.7 ft in (2650 mm) |
| Width W/ Hopper Open | 15.59 ft in (4750 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | 6BT |
| Gross Power | 117 hp (87.3 kw) |
Operational
| Operating Weight W/ Screed | 34833.1 lb (15800 kg) |
| Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
Hopper/Paver
| Paving Width - Std | 8.6 ft in (2600 mm) |
| Paving Width - Max | 19.7 ft in (6000 mm) |
| Paving Thickness - Max | 11.9 in (300 mm) |
| Paving Speed - Max | 108.3 ft/min (33 m/min) |
| Travel Speed - Max | 2.5 mph (4 km/h) |
