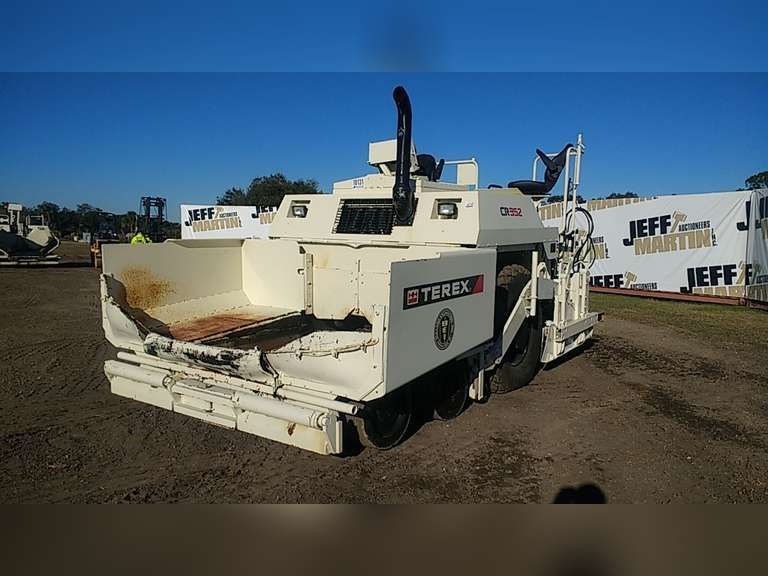

Terex CR352
Browse All Terex or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 18.51 ft in (5639 mm) |
| Transport Width | 8.5 ft in (2590 mm) |
| Transport Height | 8.67 ft in (2642 mm) |
| Wheelbase | 6.17 ft in (1880 mm) |
| Tire Size | front 10x22, rear 10-ply 18.4x26 in |
| Width W/ Hopper Open | 10.01 ft in (3050 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | 6BTAA5.9 |
| Gross Power | 165 hp (123.1 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight W/O Screed | 25260 lb (11457.8 kg) |
| Operating Weight W/ Screed | 31870 lb (14456 kg) |
| Fuel Capacity | 53.9 gal (204 L) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
| Cooling System Fluid Capacity | 6.1 gal (23 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 105 amps |
Hopper/Paver
| Hopper Capacity | 5.4 lb (4.2 kg) |
| Paving Width - Std | 8.1 ft in (2440 mm) |
| Paving Width - Max | 18.1 ft in (5500 mm) |
| Paving Thickness - Max | 12.1 in (305 mm) |
| Paving Speed - Max | 360.9 ft/min (110 m/min) |
| Travel Speed - Max | 13 mph (20.9 km/h) |
| Auger Diameter | 14 in (355 mm) |
