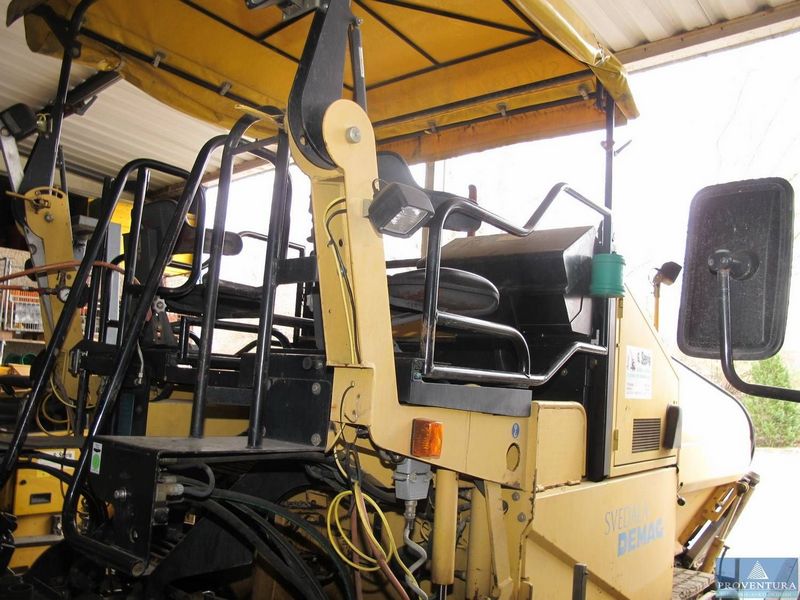

Svedala Demag DF65P
Browse All Svedala Demag or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 16.23 ft in (4945 mm) |
| Transport Height | 9.68 ft in (2950 mm) |
| Wheelbase | 5.22 ft in (1590 mm) |
| Tire Size | Front 460/250 Rear 365/85-R20 |
| Width W/ Hopper Open | 9.98 ft in (3040 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | BF 4L 2011 |
| Gross Power | 68 hp (50.8 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight W/ Screed | 18518.9 lb (8400 kg) |
| Operating Voltage | 24 V |
Hopper/Paver
| Hopper Capacity | 5.3 lb (4 kg) |
| Paving Width - Std | 5.6 ft in (1700 mm) |
| Paving Width - Max | 13.5 ft in (4100 mm) |
| Paving Thickness - Max | 10.7 in (270 mm) |
| Paving Speed - Max | 105 ft/min (32 m/min) |
| Travel Speed - Max | 11.2 mph (18 km/h) |
| Auger Diameter | 14.2 in (360 mm) |
