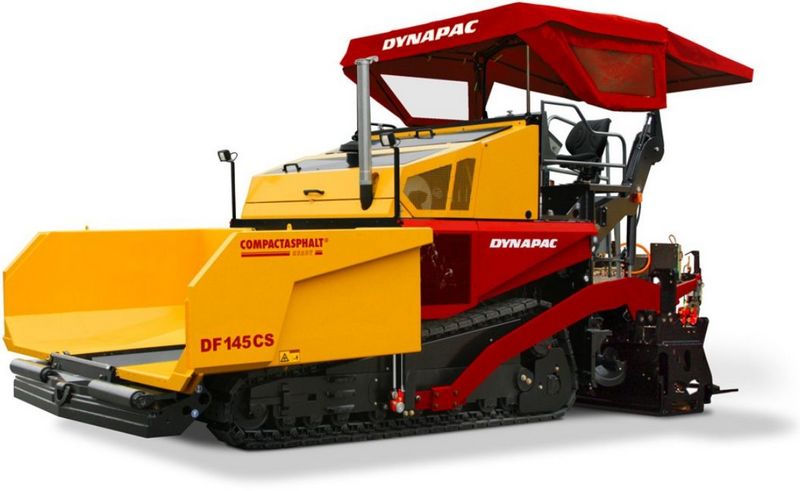

Svedala Demag DF145CS
Browse All Svedala Demag or Asphalt Paver Models
Contents:
Dimensions
| Transport Width | 8.37 ft in (2550 mm) |
| Transport Height | 10.77 ft in (3280 mm) |
| Length Of Track On Ground | 10.04 ft in (3060 mm) |
| Length W/O Screed | 21.13 ft in (6440 mm) |
| Track Width | 91.34 in (2320 mm) |
| Width W/ Hopper Open | 10.83 ft in (3300 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB 6.7-C2220 |
| Gross Power | 230 hp (171.6 kw) |
| Power Measured @ | 1800 rpm |
Operational
| Operating Weight W/ Screed | 44753.9 lb (20300 kg) |
| Operating Voltage | 24 V |
Hopper/Paver
| Hopper Capacity | 8.6 lb (6.5 kg) |
| Paving Width - Std | 8.4 ft in (2550 mm) |
| Paving Width - Max | 31.9 ft in (9700 mm) |
| Paving Thickness - Max | 13.8 in (350 mm) |
| Paving Speed - Max | 75.5 ft/min (23 m/min) |
| Travel Speed - Max | 3.2 mph (5 km/h) |
| Auger Diameter | 17 in (430 mm) |
