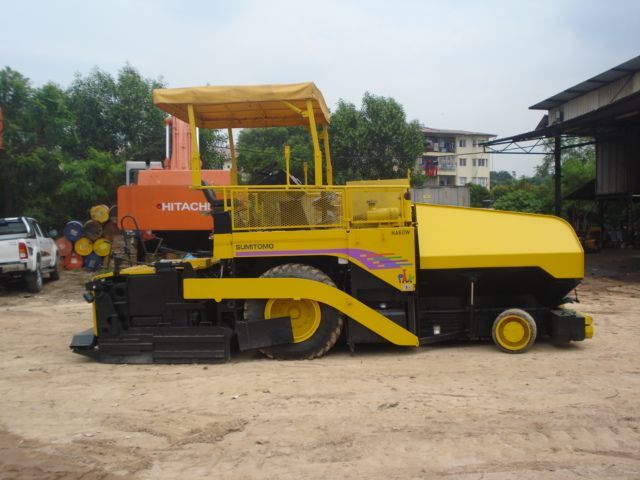

Sumitomo HA60W-3 NS
Browse All Sumitomo or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 20.61 ft in (6280 mm) |
| Transport Width | 8.17 ft in (2490 mm) |
| Transport Height | 8.47 ft in (2580 mm) |
| Wheelbase | 9.19 ft in (2800 mm) |
| Tire Size | 22x14x16, 15.5R25 |
| Width W/ Hopper Open | 19.69 ft in (6000 mm) |
Engine
| Engine Make | 2251 |
| Engine Model | 4D34-TE1 |
| Gross Power | 93.9 hp (70 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 238.5 cu in (4 L) |
Operational
| Operating Weight W/O Screed | 27998.8 lb (12700 kg) |
Hopper/Paver
| Paving Width - Std | 14.8 ft in (4500 mm) |
| Paving Width - Max | 19.7 ft in (6000 mm) |
| Paving Thickness - Max | 11.9 in (300 mm) |
| Paving Speed - Max | 78.8 ft/min (24 m/min) |
| Travel Speed - Max | 9.4 mph (15 km/h) |
| Auger Diameter | 13 in (330 mm) |
