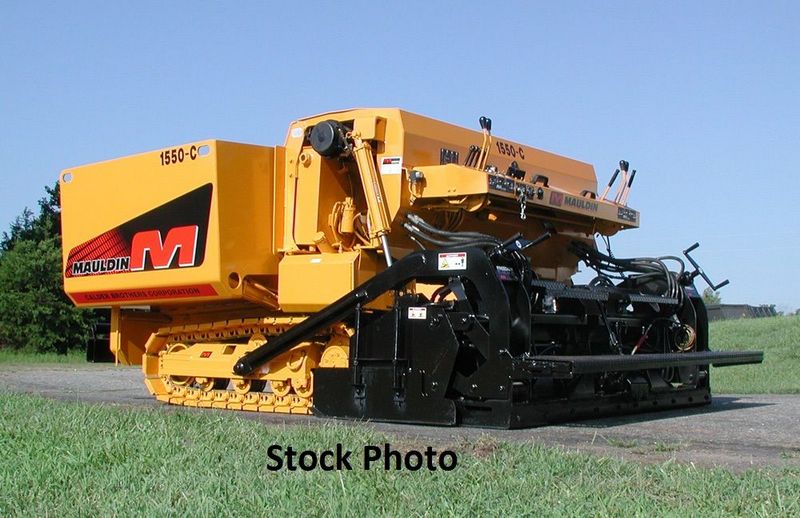

Mauldin 1550C
Browse All Mauldin or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 10.33 ft in (3148.59 mm) |
| Transport Width | 8.5 ft in (2590.81 mm) |
| Transport Height | 5.33 ft in (1624.59 mm) |
| Width W/ Hopper Open | 10 ft in (3048 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Net Power | 60 hp (44.8 kw) |
Operational
| Operating Weight W/ Screed | 12500 lb (5670 kg) |
| Fuel Capacity | 13 gal (49.3 L) |
| Hydraulic System Fluid Capacity | 15.5 gal (58.7 L) |
| Operating Voltage | 12 V |
Hopper/Paver
| Paving Width - Std | 8 ft in (2438.4 mm) |
| Paving Width - Max | 13 ft in (3962.4 mm) |
| Paving Speed - Max | 140 ft/min (42.7 m/min) |
| Travel Speed - Max | 3.3 mph (5.4 km/h) |
| Auger Diameter | 9 in (228.6 mm) |
