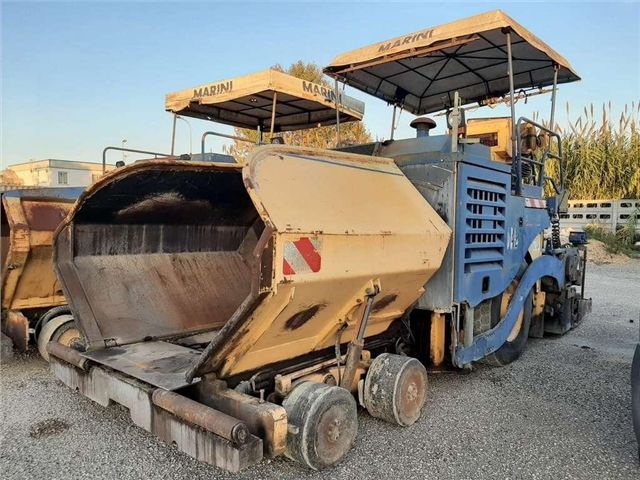

Marini MF691
Browse All Marini or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 22.05 ft in (6718 mm) |
| Transport Width | 8.37 ft in (2550 mm) |
| Transport Height | 12.28 ft in (3740 mm) |
| Tire Size | 17.5R25 |
| Width W/ Hopper Open | 11.13 ft in (3390 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2349 |
| Engine Model | BF6M 2012C-EMR |
| Gross Power | 187.8 hp (140 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight W/ Screed | 39683.3 lb (18000 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
Hopper/Paver
| Hopper Capacity | 11.4 lb (8.7 kg) |
| Paving Width - Std | 6.3 ft in (1900 mm) |
| Paving Width - Max | 26.8 ft in (8150 mm) |
| Paving Thickness - Max | 11.9 in (300 mm) |
| Paving Speed - Max | 141.1 ft/min (43 m/min) |
| Travel Speed - Max | 9.4 mph (15 km/h) |
| Auger Diameter | 15.8 in (400 mm) |
