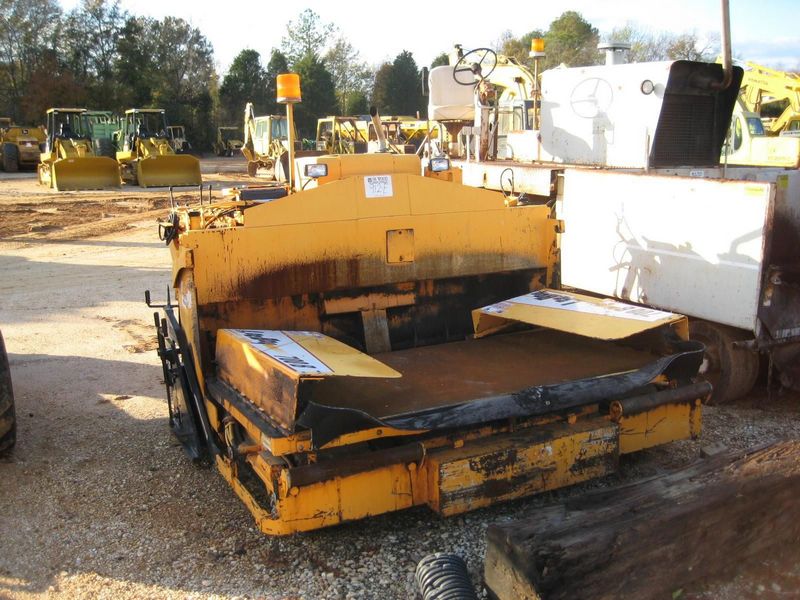

LeeBoy 700B (Rubber Tire)
Browse All LeeBoy or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 8.17 ft in (2490 mm) |
| Transport Width | 8.5 ft in (2590 mm) |
| Transport Height | 6.01 ft in (1830 mm) |
Engine
| Engine Make | 2360 |
| Gross Power | 37 hp (27.6 kw) |
Operational
| Operating Weight W/O Screed | 10000 lb (4536 kg) |
| Fuel Capacity | 13 gal (49 L) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
Hopper/Paver
| Paving Width - Std | 8.1 ft in (2440 mm) |
| Paving Width - Max | 12.1 ft in (3660 mm) |
| Paving Speed - Max | 69.9 ft/min (21.3 m/min) |
| Travel Speed - Max | 2 mph (3.2 km/h) |
