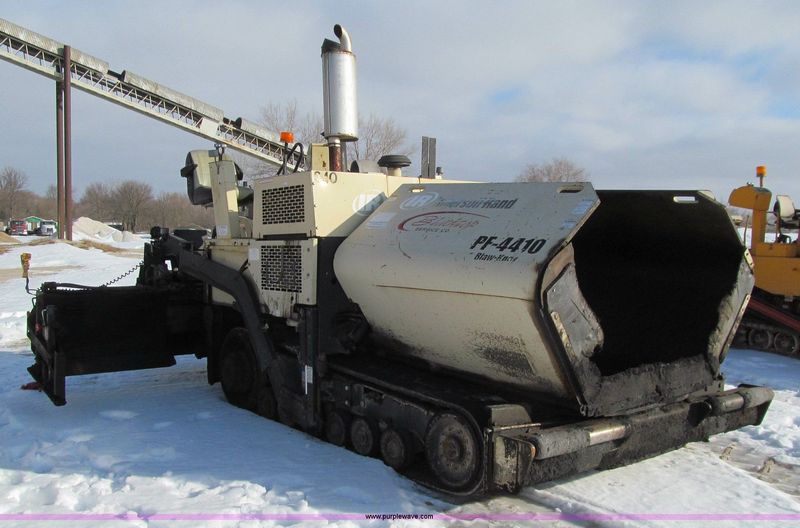

Ingersoll Rand PF4410
Browse All Ingersoll Rand or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 17.2 ft in (5240 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 10.27 ft in (3130 mm) |
| Length Of Track On Ground | 8.51 ft in (2591 mm) |
| Track Width | 14 in (355.6 mm) |
| Width W/ Hopper Open | 10.44 ft in (3180 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB 5.9-3OT |
| Net Power | 158 hp (117.9 kw) |
Operational
| Operating Weight W/O Screed | 28900.4 lb (13109 kg) |
| Operating Weight W/ Screed | 31499.7 lb (14288 kg) |
| Fuel Capacity | 38.1 gal (144 L) |
| Hydraulic System Fluid Capacity | 39.9 gal (151 L) |
| Cooling System Fluid Capacity | 6.7 gal (25 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 130 amps |
Hopper/Paver
| Hopper Capacity | 5.8 lb (4.4 kg) |
| Paving Width - Std | 8.1 ft in (2440 mm) |
| Paving Width - Max | 25 ft in (7620 mm) |
| Paving Thickness - Max | 8 in (203.2 mm) |
| Paving Speed - Max | 242.2 ft/min (73.8 m/min) |
| Travel Speed - Max | 8.6 mph (13.7 km/h) |
| Auger Diameter | 16 in (406.4 mm) |
