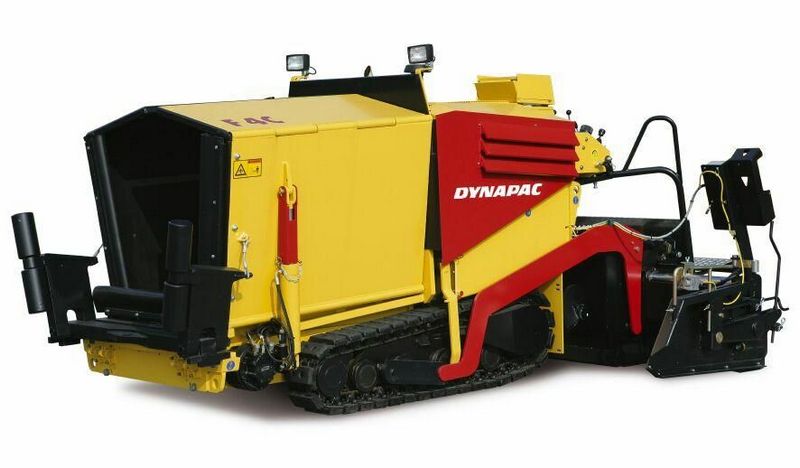

Dynapac F4C
Browse All Dynapac or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 13.98 ft in (4260 mm) |
| Transport Width | 3.94 ft in (1200 mm) |
| Transport Height | 6.11 ft in (1860 mm) |
| Length Of Track On Ground | 4.55 ft in (1385 mm) |
| Width W/ Hopper Open | 9.09 ft in (2770 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | D2011L3I |
| Gross Power | 45 hp (33.6 kw) |
| Power Measured @ | 2800 rpm |
Operational
| Operating Weight W/ Screed | 10802.7 lb (4900 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
Hopper/Paver
| Hopper Capacity | 3.1 lb (2.3 kg) |
| Paving Width - Std | 4 ft in (1200 mm) |
| Paving Width - Max | 10.2 ft in (3100 mm) |
| Paving Thickness - Max | 7.9 in (200 mm) |
| Paving Speed - Max | 52.5 ft/min (16 m/min) |
| Travel Speed - Max | 1.9 mph (3 km/h) |
| Auger Diameter | 14.2 in (360 mm) |
