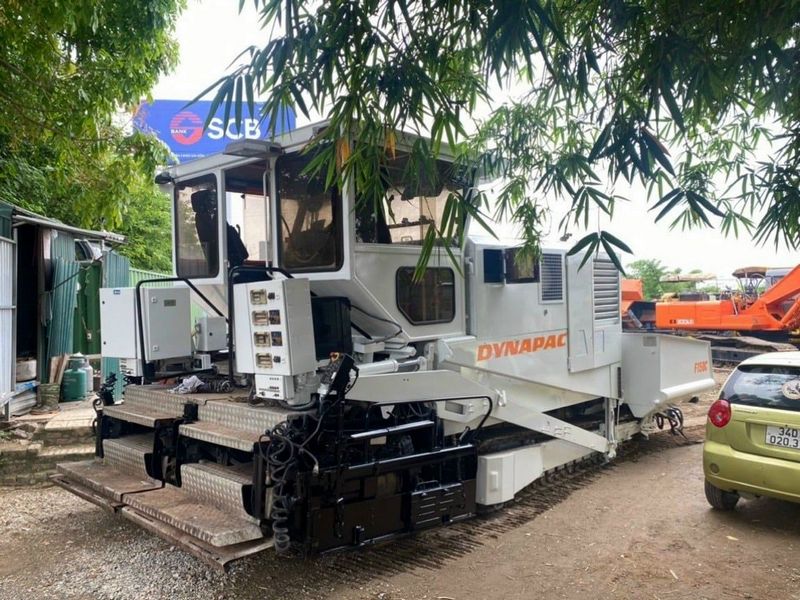

Dynapac F151C
Browse All Dynapac or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 24.48 ft in (7460 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 11.82 ft in (3600 mm) |
| Width W/ Hopper Open | 11.16 ft in (3400 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | BF6M 2012 FC |
| Gross Power | 175.7 hp (131 kw) |
Operational
| Operating Weight W/ Screed | 44000 lb (19958.1 kg) |
Hopper/Paver
| Hopper Capacity | 7.5 lb (5.7 kg) |
| Paving Width - Std | 9.9 ft in (3000 mm) |
| Paving Width - Max | 29.6 ft in (9000 mm) |
| Paving Thickness - Max | 11.9 in (300 mm) |
| Paving Speed - Max | 65.7 ft/min (20 m/min) |
| Travel Speed - Max | 2.4 mph (3.8 km/h) |
| Auger Diameter | 15 in (380 mm) |
