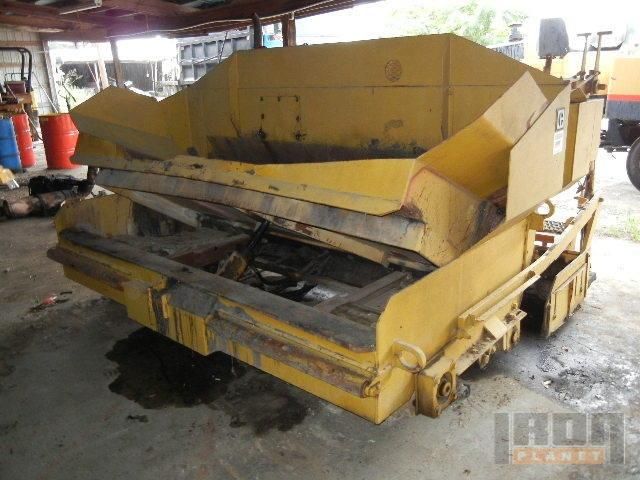

Caterpillar AP200
Browse All Caterpillar or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 8.01 ft in (2440 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 5.68 ft in (1730 mm) |
| Length Of Track On Ground | 2.5 ft in (760 mm) |
| Track Width | 15 in (381 mm) |
| Width W/ Hopper Open | 12.01 ft in (3658 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | F2L511 |
| Gross Power | 35 hp (26.1 kw) |
| Displacement | 99.2 cu in (1.7 L) |
Operational
| Operating Weight W/ Screed | 8994.9 lb (4080 kg) |
| Fuel Capacity | 5.2 gal (19.5 L) |
| Hydraulic System Fluid Capacity | 18 gal (68 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 50 amps |
Hopper/Paver
| Paving Width - Std | 3 ft in (914 mm) |
| Paving Width - Max | 12.1 ft in (3658 mm) |
| Paving Speed - Max | 177.2 ft/min (54 m/min) |
