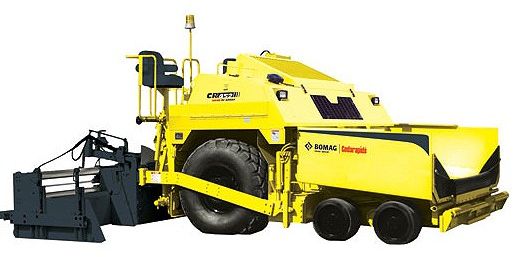

Bomag CR452
Browse All Bomag or Asphalt Paver Models
Contents:
Dimensions
| Transport Width | 5.92 ft in (1803 mm) |
| Transport Height | 8.67 ft in (2642 mm) |
| Overall Length | 445 in (11303 mm) |
| Track Width | 36 in (914.4 mm) |
Screed
| Screed Plate Thickness | 0.5 in (12.7 mm) |
| Positive Crown | 3 in (76.2 mm) |
| Negative Crown | 1 in (25.4 mm) |
| Vibrations Per Minute (Max) | 3000 |
| Stretch® 16 (Electric Heat) Generator | 45.6 hp (34 kw) |
| Stretch® 16 (Four Oil Heaters) 274,000 Btu (Total) | 2.0 gph |
| Fastach® 8 (Electric Heat) Generator | 45.6 hp (34 kw) |
| Fastach® 8 (Two Oil Heaters) 178,000 Btu | 1.3 gph |
Engine
| Emission Tier Level | Tier 4i |
| Engine Make | Cummins |
| Engine Model | QSB6.7 |
| Gross Power | 164 hp (122.3 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Turbocharged |
Operational
| Fuel Capacity | 72 gal (272.6 L) |
| Hydraulic System Fluid Capacity | 75 gal (284 L) |
| Cooling System Fluid Capacity | 6.5 gal (24.7 L) |
| Operating Voltage | 12 V |
Hopper/Paver
| Hopper Capacity | 25400.1 lb (11521.3 kg) |
| Hopper Width | 119 in (3022.6 mm) |
| Auger Construction | Cast , High alloy |
| Slat Conveyor Liner Thickness | 0.4 in (9.5 mm) |
| Paving Depth - Max | 12.1 in (305 mm) |
| Hopper Volume | 8.2 yd3 (6.2 m3) |
| Feed Tunnel Width | 25 in (635 mm) |
| Hopper Length | 71 in (1803.4 mm) |
| Auger Thickness | 0.7 in (16 mm) |
| Paving Width - Max | 28 ft in (8534.4 mm) |
| Paving Speed - Max | 305 ft/min (93 m/min) |
| Travel Speed - Max | 10 mph (16 km/h) |
| Auger Diameter | 16 in (406.4 mm) |
Weights
| Tractor Weight | 30595.8 lb (13878 kg) |
| Tractor Weight - With Fastach® 8 And Hydroflated Tires | 34595 lb (15692 kg) |
| Tractor Weight - With Stretch 16 And Hydroflated Tires | 38495 lb (17461 kg) |
Tires
| Front Wheels | 22.1 in (559 mm) |
| Drive Tires | 25 in (635 mm) |
Brakes
| Parking Brake | Multiple disc |
