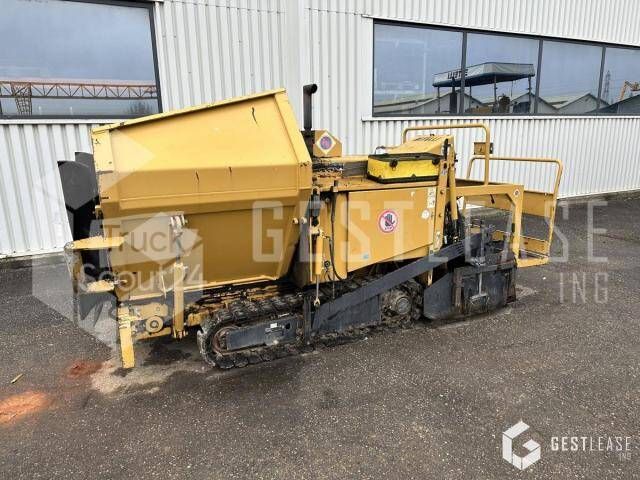

Bitelli BB621C
Browse All Bitelli or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 13.26 ft in (4040 mm) |
| Transport Width | 4.6 ft in (1400 mm) |
| Transport Height | 8.54 ft in (2600 mm) |
| Transport Width - Hoppers Raised - With End Gates With Extend-A-Mat B Screed | 4.59 ft in (1.4 m) |
| Length - With Push Roller And Extend-A-Mat B Screed | 13.25 ft in (4.04 m) |
| Width W/ Hopper Open | 9.19 ft in (2800 mm) |
| Overall Height | 8.53 ft in (2599.95 mm) |
| Track Contact Length | 4.7 ft in (1.43 m) |
Engine
| Engine Make | 2360 |
| Engine Model | 2M 41L |
| Gross Power | 35.4 hp (26.4 kw) |
| Engine Model | Hatz 2M 41L |
Operational
| Operating Weight W/O Screed | 7275.3 lb (3300 kg) |
| Operating Weight W/ Screed | 8818.5 lb (4000 kg) |
| Fuel Capacity | 18.3 gal (69 L) |
| Hydraulic System Fluid Capacity | 19.3 gal (73 L) |
Hopper/Paver
| Hopper Capacity | 4 lb (3 kg) |
| Paving Width - Std | 4.6 ft in (1400 mm) |
| Paving Width - Max | 9.9 ft in (3000 mm) |
| Paving Speed - Max | 108.3 ft/min (33 m/min) |
| Travel Speed - Max | 2.6 mph (4.1 km/h) |
Weights
| Tractor Weight | 7275.3 lb (3300 kg) |
| Operating Weight - With Extend-A-Mat 8-16b Screed | 8818.5 lb (4000 kg) |
| Operating Weight - With Screed | 8818.5 lb (4000 kg) |
Operating Specifications
| Paving Width Minimum | 1.7 ft in (0.5 m) |
| Paving Width Maximum | 9.9 ft in (3 m) |
Service Refill Capacities
| Cooling System | 5.9 gal (22 L) |
| Fuel Tank Capacity | 18.3 gal (69.1 L) |
| Hydraulic Oil Tank | 19.3 gal (73 L) |
Drive System
| Maximum Paving Speed | 108.27 ft/min |
| Maximum Travel Speed | 2.6 mph (4.2 km/h) |
Hopper
| Hopper Capacity | 105.94 ft |
