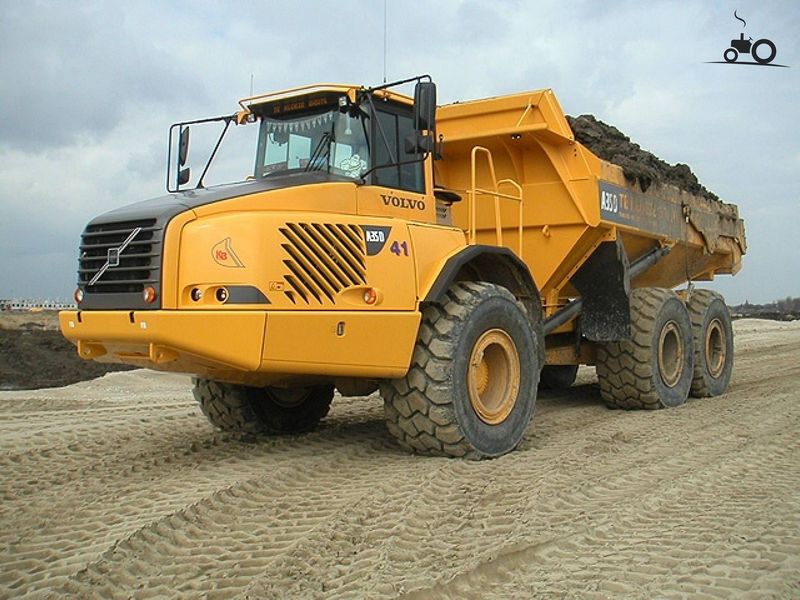

Volvo A35D
Browse All Volvo or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 36.68 ft in (11178 mm) |
| Overall Width | 10.19 ft in (3103 mm) |
| Overall Height | 12.08 ft in (3681 mm) |
| Wheelbase | 14.77 ft in (4501 mm) |
| Ground Clearance | 1.88 ft in (572 mm) |
| Dump Height | 23.76 ft in (7242 mm) |
| Dump Ground Clearance | 3.01 ft in (915 mm) |
Dump
| Dump Angle | 70 degrees |
| Lower Time | 10 sec |
| Rated Payload | 71650.24 lb (32500 kg) |
| Capacity - Struck | 19.89 yd3 (15.2 m3) |
| Capacity - Heaped | 26.16 yd3 (20 m3) |
Engine
| Engine Make | 2244 |
| Engine Model | D12C ABE2* |
| Gross Power | 393 hp (293.1 kw) |
| Net Power | 388 hp (289.4 kw) |
| Max Torque | 1412.5 lb ft (1915 Nm) |
| Aspiration | Turbocharged |
| Displacement | 732.3 cu in (12 L) |
Operational
| Fuel Capacity | 126.9 gal (480 L) |
| Hydraulic System Fluid Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 31 gal (117 L) |
| Engine Oil Capacity | 13.3 gal (50 L) |
| Transmission Fluid Capacity | 12.9 gal (48.5 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Tire Size | 26.5 R 25* |
Transmission
| Transmission Type | Fully Automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed | 34.8 mph (56 km/h) |
Weights
| Front Axle - Empty | 33774.9 lb (15320 kg) |
| Rear Axle - Empty | 28616 lb (12980 kg) |
| Front Axle - Loaded | 39176.2 % |
| Rear Axle - Loaded | 94865 lb (43030 kg) |
| Total Empty | 62390.9 lb (28300 kg) |
| Total Loaded | 134041.1 lb (60800 kg) |
