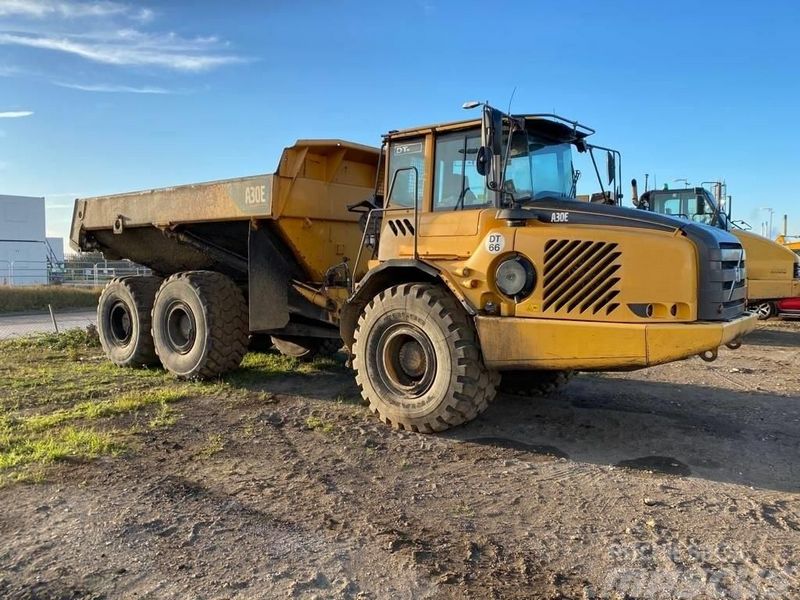

Volvo A30E
Browse All Volvo or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 33.8 ft in (10297 mm) |
| Overall Width | 9.5 ft in (2900 mm) |
| Overall Height | 10.9 ft in (3310 mm) |
| Wheelbase | 13.7 ft in (4175 mm) |
| Ground Clearance | 2.21 ft in (659 mm) |
| Dump Height | 21.6 ft in (6592 mm) |
| Dump Ground Clearance | 2.3 ft in (686 mm) |
Dump
| Dump Angle | 70 degrees |
| Lower Time | 9 sec |
| Rated Payload | 61729 lb (28000 kg) |
| Capacity - Struck | 17.8 yd3 (13.6 m3) |
| Raise Time | 12 sec |
| Capacity - Heaped | 22.9 yd3 (17.5 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D9B ACE3 |
| Gross Power | 338 hp (252 kw) |
| Net Power | 336 hp (250.6 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 1254 lb ft (- Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Turbocharged and Intercooled |
| Displacement | 574 cu in (9.4 L) |
Operational
| Fuel Capacity | 106 gal (400 L) |
| Hydraulic System Fluid Capacity | 46 gal (175 L) |
| Cooling System Fluid Capacity | 30.4 gal (115 L) |
| Engine Oil Capacity | 10.6 gal (40 L) |
| Transmission Fluid Capacity | 11 gal (41 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 750/65R25 |
Transmission
| Transmission Type | PT 1562 |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed | 32.9 mph (53 km/h) |
Weights
| Front Axle - Empty | 27557 lb (12500 kg) |
| Rear Axle - Empty | 23280 lb (10560 kg) |
| Front Axle - Loaded | 33047 % |
| Rear Axle - Loaded | 79520 lb (36070 kg) |
| Total Empty | 50383 lb (23060 kg) |
| Total Loaded | 112568 lb (51060 kg) |
