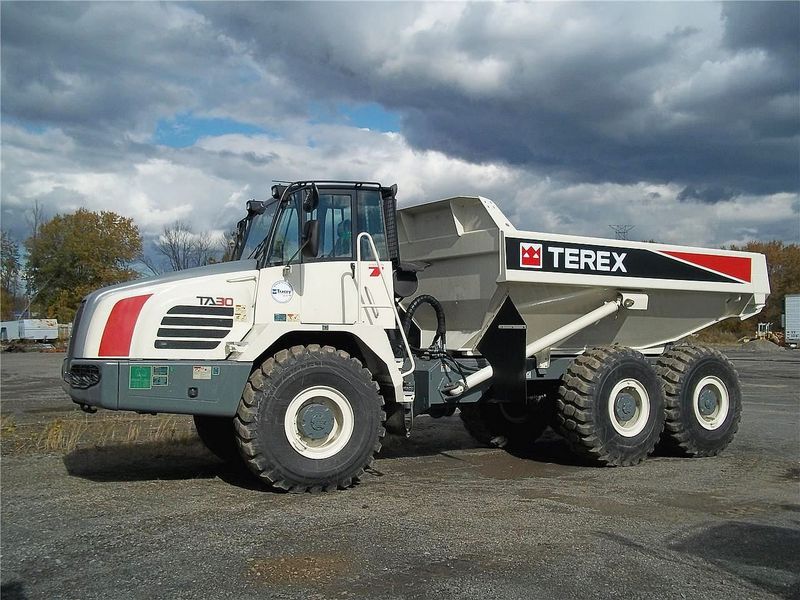

Terex TA30
Browse All Terex or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 32.01 ft in (9755 mm) |
| Overall Width | 9.5 ft in (2895 mm) |
| Overall Height | 11.32 ft in (3450 mm) |
| Wheelbase | 16.74 ft in (5100 mm) |
| Ground Clearance | 1.33 ft in (405 mm) |
| Dump Height | 20.05 ft in (6110 mm) |
| Dump Ground Clearance | 2.38 ft in (725 mm) |
Dump
| Dump Angle | 65 degrees |
| Lower Time | 7.5 sec |
| Rated Payload | 61730 lb (28000.26 kg) |
| Capacity - Struck | 18.05 yd3 (13.8 m3) |
| Raise Time | 12 sec |
| Capacity - Heaped | 22.89 yd3 (17.5 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSM11 |
| Gross Power | 385 hp (287.1 kw) |
| Net Power | 333 hp (248.4 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1310 lb ft (1776.2 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
| Displacement | 660 cu in (10.9 L) |
Operational
| Fuel Capacity | 103.1 gal (390 L) |
| Hydraulic System Fluid Capacity | 53.4 gal (202 L) |
| Cooling System Fluid Capacity | 14.3 gal (54 L) |
| Engine Oil Capacity | 9 gal (34 L) |
| Transmission Fluid Capacity | 16.7 gal (63 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Tire Size | 23.5R25 |
Transmission
| Transmission Type | ZF 6WG 310 RPC fully automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed | 31.7 mph (51 km/h) |
Weights
| Center Axle - Empty | 11685 % |
| Front Axle - Empty | 25840 lb (11720.9 kg) |
| Rear Axle - Empty | 11905 lb (5400.1 kg) |
| Front Axle - Loaded | 37040 % |
| Center Axle - Loaded | 36860 % |
| Rear Axle - Loaded | 37360 lb (16946.3 kg) |
| Total Empty | 49430 lb (22421.1 kg) |
| Total Loaded | 111160 lb (50421.4 kg) |
