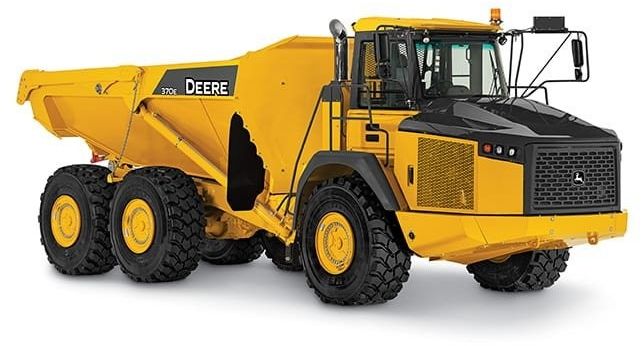

John Deere 370E
Browse All John Deere or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 35.47 ft in (10810 mm) |
| Articulation Angle | 45 |
| Hoist - Type | Twin, 1-Stage |
| Max Height | 12.5 ft in (3810 mm) |
| Power Down | Yes |
| Turning Radius - Inside | 15.2 ft in (4630 mm) |
| Turning Radius Outside Tires | 29.2 ft in (8900 mm) |
| Turns Lock To Lock | 4.2 |
| Approach Angle | 24 - |
| Width Over Tires | 11.29 ft in (3440 mm) |
Driveline
| Engine Model | PowerTech 6135 |
| Displacement | 823.9 cu in (13.5 L) |
| Engine Manufacturer | John Deere |
| Emission Rating | Tier 4 |
| Rated Speed | 1900 rpm |
| Parking Brake Type | Disc - Transmission |
| Transmission Type | Countershaft |
| Differential Lock | F: 100 / R: 100 |
| Service Brake Actuation | Hydraulic |
| Tire Size - Standard | 23.5 R25 |
| Rear Suspension - Type | Pivoting Walking Beam |
| Final Drive | Planetary - Outboard |
| Retarder - Type | Hydraulic - Transmission |
| Transmission Manufacturer | ZF |
| Secondary Steering Type | Ground Driven Pump |
| Rear Suspension | Rubber Suspension Blocks |
| Front Suspension - Type | A-Frame |
| Front Suspension | Nitrogen/Oil-Filled Struts - Auto Levelling |
| Steering Type | Articulated |
Capacities
| Fuel Tank - Diesel | 160.9 gal (609 L) |
| Struck Capacity | 21.4 yd3 (16.3 m3) |
| Heaped Capacity | 26.9 yd3 (20.5 m3) |
Description
| Fleet Management | Yes |
| Steering Wheel Adjustment | Fully Adjustable |
| Telematics Available | Yes |
| Air Conditioner | Yes |
Performance
| Gears - Forward / Reverse | 8F - 4R |
Weights
| Payload | 74139.3 lb (33629 kg) |
| Gross Weight | 142002 lb (64411 kg) |
| Net Weight | 67862.7 lb (30782 kg) |
