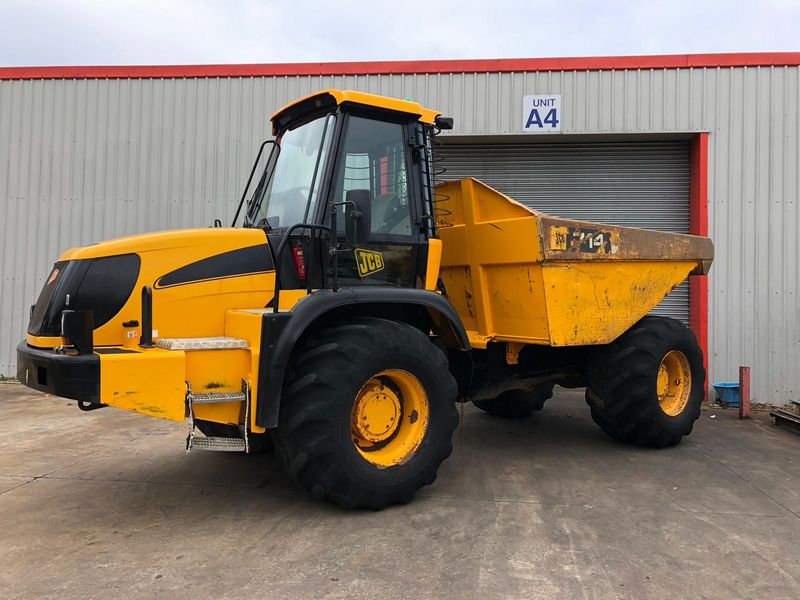

JCB 714
Browse All JCB or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 22.26 ft in (6784 mm) |
| Overall Width | 8.21 ft in (2500 mm) |
| Overall Height | 11.24 ft in (3425 mm) |
| Wheelbase | 11.98 ft in (3650 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Dump Height | 12.68 ft in (3862 mm) |
| Dump Ground Clearance | 2.24 ft in (680 mm) |
Dump
| Dump Angle | 84 degrees |
| Lower Time | 10 sec |
| Capacity - Heaped | 9.6 yd3 (7.34 m3) |
| Rated Payload | 28969 lb (13140.12 kg) |
| Raise Time | 9.7 sec |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6BTAA |
| Gross Power | 150 hp (111.9 kw) |
| Net Power | 143.5 hp (107.1 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 465 lb ft (630.5 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbo charged/charged cooled |
| Displacement | 360.1 cu in (5.9 L) |
Operational
| Fuel Capacity | 52.8 gal (199.9 L) |
| Hydraulic System Fluid Capacity | 23.3 gal (88 L) |
| Cooling System Fluid Capacity | 7.9 gal (30 L) |
| Engine Oil Capacity | 4.3 gal (16.3 L) |
| Transmission Fluid Capacity | 9.2 gal (34.9 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Tire Size | Michelin 20.5 R25 |
Transmission
| Transmission Type | Smoothshift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed | 24.8 mph (40 km/h) |
Weights
| Front Axle - Empty | 14043 lb (6369.8 kg) |
| Rear Axle - Empty | 8311 lb (3769.9 kg) |
| Front Axle - Loaded | 19775 % |
| Rear Axle - Loaded | 31240 lb (14170.3 kg) |
| Total Empty | 22355 lb (10140.1 kg) |
| Total Loaded | 51015 lb (23140.1 kg) |
