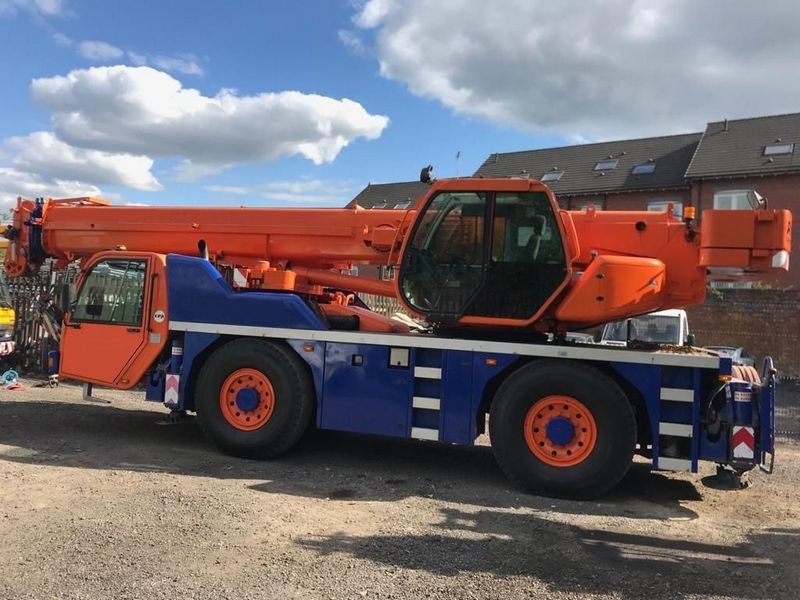

Terex ATT400-3
Browse All Terex or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 30.84 ft in (9.4 m) |
| Max Height @ Max Raise Angle - No Jib | 99.74 ft in (30.4 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 35.06 ft in (10685 mm) |
| Transport Width | 8.37 ft in (2550 mm) |
| Transport Height | 10.93 ft in (3330 mm) |
| Width W/ Outriggers Extended | 19.53 ft in (5950 mm) |
| Carrier Length | 27.45 ft in (8365 mm) |
| Upper Structure Tail Swing Radius | 10.34 ft in (3150 mm) |
Carrier Engine
| Make | Terex |
| Model | OM 906 LA |
| Gross Power | 275 hp (205 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 811.4 lb ft (1100 Nm) |
| Torque Measured @ | 1300 rpm |
| Displacement | 388.8 cu in (6.4 L) |
Operational
| Operating Weight | 48000 lb (21772.4 kg) |
| Number Of Axels | 2 |
| Carrier Fuel Capacity | 66.1 gal (250 L) |
| Upper Structure Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00 R 25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 46.7 mph (75 km/h) |
| Max Speed - Reverse | 15 mph (24 km/h) |
