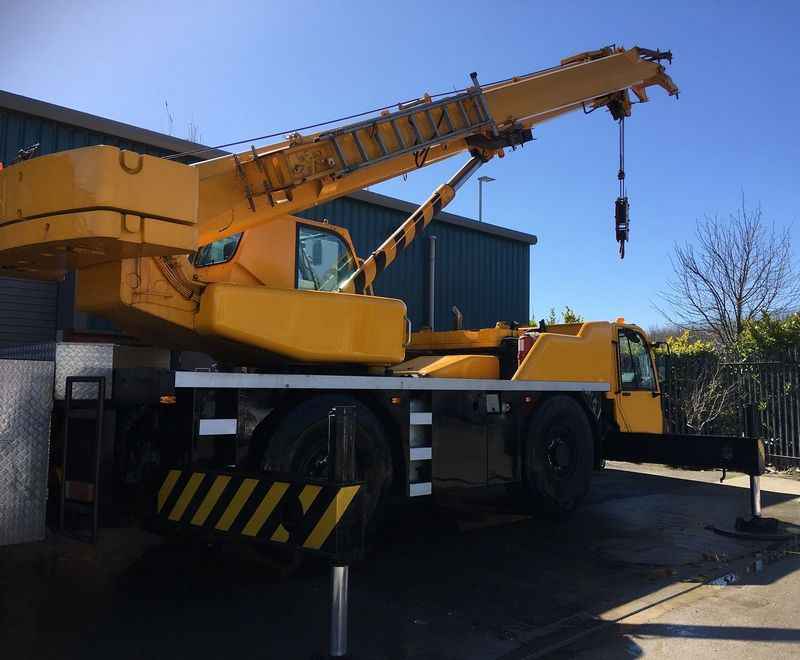

Terex AC40 City
Browse All Terex or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 34.13 ft in (10.4 m) |
| Max Height @ Max Raise Angle - No Jib | 108.27 ft in (33 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 91.87 ft in (28 m) |
| Max Elevating Angle | 78 degrees |
| Max Lift Capacity | 88184.9 lb (40000 kg) |
| Swing Speed | 2 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 28.92 ft in (8812 mm) |
| Transport Width | 8.37 ft in (2550 mm) |
| Transport Height | 10.16 ft in (3095 mm) |
| Ground Clearance | 0.79 ft in (240 mm) |
| Width W/ Outriggers Extended | 20.35 ft in (6200 mm) |
| Carrier Length | 24.08 ft in (7339 mm) |
| Upper Structure Tail Swing Radius | 10.5 ft in (3200 mm) |
Carrier Engine
| Make | Terex |
| Model | OM 906 LA |
| Gross Power | 275 hp (205 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 811.4 lb ft (1100 Nm) |
| Torque Measured @ | 1300 rpm |
Operational
| Number Of Axels | 2 |
| Carrier Fuel Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 445/65R22.5 |
Transmission
| Transmission Type | automatic transmission |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 49.8 mph (80 km/h) |
