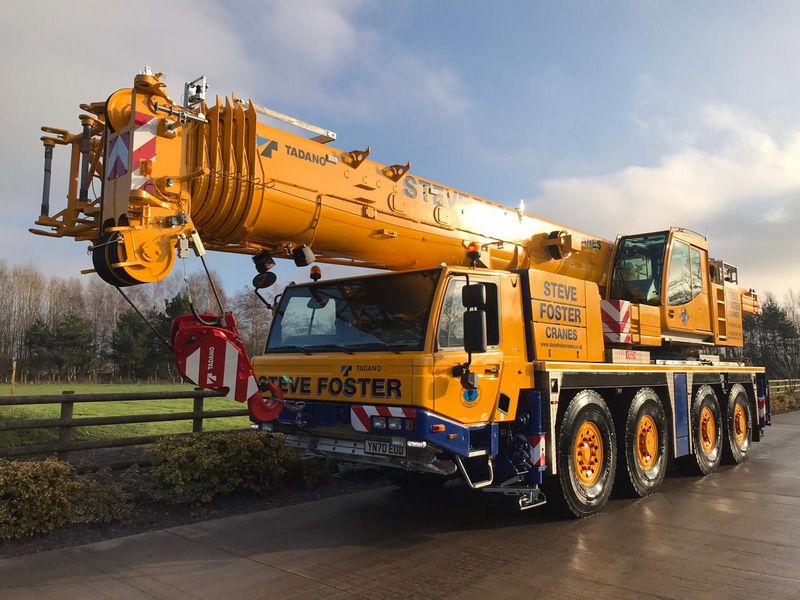

Tadano ATF 100G-4
Browse All Tadano or All Terrain Crane Models
Contents:
Boom
| Swing Speed | 2 rpm |
| Number Of Sections | 6 |
Dimensions
| Transport Length | 42.1 ft in (12832.08 mm) |
| Transport Width | 12.9 ft in (3931.92 mm) |
| Transport Height | 12.11 ft in (3691.13 mm) |
| Ground Clearance | 1.78 ft in (542 mm) |
| Carrier Length | 35.3 ft in (10759.44 mm) |
Electrical System
| Batteries | 2 |
| Electrical System | 24 V |
Upper Structure Engine
| Number Of Cylinders | 4 |
| Cooling System | water-cooled |
| Make | Tadano |
| Model | OM 934 LA |
| Net Power | 175 hp (130.5 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 553.2 lb ft (750 Nm) |
| Torque Measured @ | 1600 rpm |
Carrier Engine
| Make | Tadano |
| Model | OM 470 LA |
| Net Power | 435 hp (324.4 kw) |
| Power Measured @ | 1700 rpm |
| Max Torque | 1548.9 lb ft (2100 Nm) |
| Torque Measured @ | 1300 rpm |
| Number Of Cylinders | 6 |
Operational
| Number Of Axels | 4 |
| Upper Structure Hydraulic System Fluid Capacity | 58.2 gal (220 L) |
| Carrier Hydraulic System Fluid Capacity | 105.7 gal (400 L) |
| Tire Size | 16.00R25 |
Transmission
| Transmission Type | ZF-AS-Tronic 2531 mechanical |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
| Max Speed | 15.5 mph (25 km/h) |
Weights
| Counterweight | 13228 lb (6000.2 kg) |
