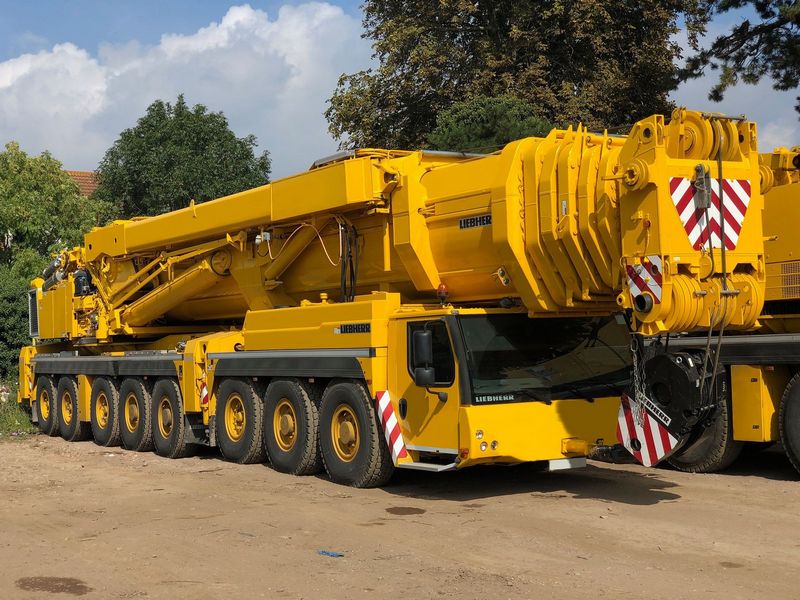

Liebherr LTM1500-8.1 (84M)
Browse All Liebherr or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 52.83 ft in (16.11 m) |
| Max Height @ Max Raise Angle - No Jib | 275.6 ft in (84 m) |
| Min Working Radius | 16.41 ft in (5 m) |
| Max Working Radius | 255.91 ft in (78 m) |
| Max Elevating Angle | 83 degrees |
| Number Of Sections | 7 |
| Max Lift Capacity | 1102311.38 lb (500000 kg) |
| Swing Speed | 1 rpm |
Dimensions
| Transport Length | 68.8 ft in (20970 mm) |
| Transport Width | 20.51 ft in (6250 mm) |
| Transport Height | 12.96 ft in (3950 mm) |
| Carrier Length | 61.13 ft in (18630 mm) |
| Upper Structure Tail Swing Radius | 19.74 ft in (6015 mm) |
Upper Structure Engine
| Make | Liebherr |
| Model | D936L A6 |
| Net Power | 326 hp (243.1 kw) |
| Max Torque | 1500 lb ft (2033.8 Nm) |
Carrier Engine
| Make | Liebherr |
| Model | D9508 A7 |
| Net Power | 680 hp (507.1 kw) |
| Max Torque | 3000 lb ft (4067.5 Nm) |
Operational
| Number Of Axels | 8 |
| Carrier Fuel Capacity | 158.6 gal (600 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 170 amps |
| Tire Size | 14R25 |
Transmission
| Transmission Type | automatic with torque converter ZF TC-tronic |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 46.7 mph (75 km/h) |
| Max Speed - Reverse | 4.5 mph (7.2 km/h) |
