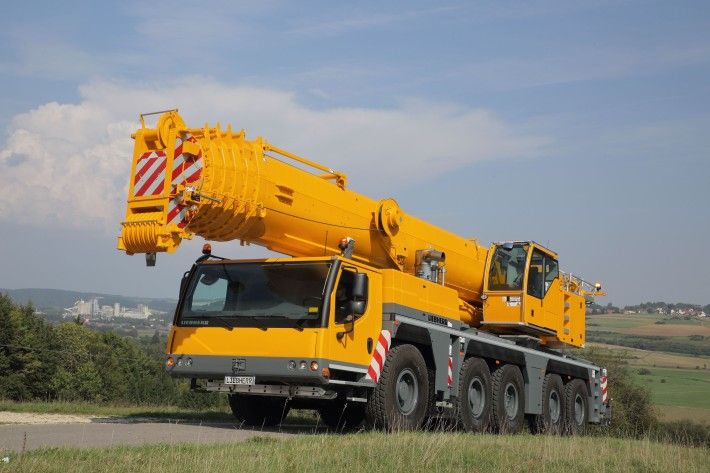

Liebherr LTM1220-5.2
Browse All Liebherr or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 43.64 ft in (13.3 m) |
| Max Height @ Max Raise Angle - No Jib | 196.86 ft in (60 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 216.54 ft in (66 m) |
| Max Elevating Angle | 82 degrees |
| Max Lift Capacity | 485017.01 lb (220000 kg) |
| Number Of Sections | 6 |
Dimensions
| Transport Length | 50.28 ft in (15323 mm) |
| Transport Width | 18.05 ft in (5500 mm) |
| Transport Height | 12.96 ft in (3950 mm) |
| Carrier Length | 43.63 ft in (13298 mm) |
| Upper Structure Tail Swing Radius | 13.04 ft in (3973 mm) |
Upper Structure Engine
| Make | Liebherr |
| Model | D934L A6 |
| Net Power | 245 hp (182.7 kw) |
| Max Torque | 1140 lb ft (1545.7 Nm) |
Carrier Engine
| Make | Liebherr |
| Model | D846 A7 |
| Net Power | 503 hp (375.1 kw) |
| Max Torque | 2355 lb ft (3193 Nm) |
Operational
| Number Of Axels | 5 |
| Upper Structure Fuel Capacity | 70.1 gal (265 L) |
| Carrier Fuel Capacity | 129.5 gal (490 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 170 amps |
| Tire Size | 14R25 |
Transmission
| Transmission Type | ZF-12 speed gear box with automatic control system AS-TRONIC |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 46.7 mph (75 km/h) |
| Max Speed - Reverse | 4.5 mph (7.2 km/h) |
