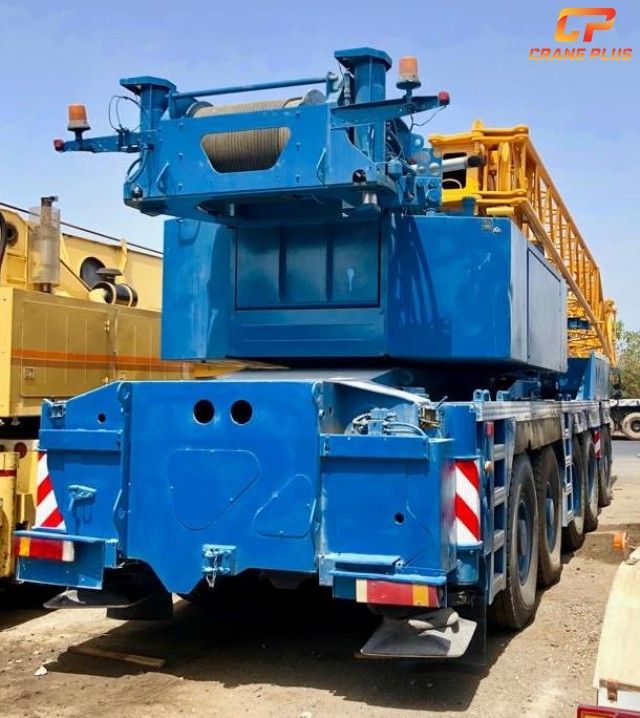

Liebherr LTM1160
Browse All Liebherr or All Terrain Crane Models
Contents:
Boom
| Max Height @ Max Raise Angle - No Jib | 147.64 ft in (45 m) |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 54.98 ft in (16755 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 13.1 ft in (3990 mm) |
| Width W/ Outriggers Extended | 28.22 ft in (8600 mm) |
| Carrier Length | 46.5 ft in (14172 mm) |
| Upper Structure Tail Swing Radius | 17.07 ft in (5200 mm) |
Upper Structure Engine
| Make | Liebherr |
| Model | OM 362 LA |
| Gross Power | 177.1 hp (132 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 448.5 lb ft (608 Nm) |
| Torque Measured @ | 1600 rpm |
Carrier Engine
| Make | Liebherr |
| Model | OM 424 A |
| Gross Power | 523 hp (390 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 1533.4 lb ft (2079 Nm) |
| Torque Measured @ | 1400 rpm |
Operational
| Upper Structure Fuel Capacity | 79.3 gal (300 L) |
| Carrier Fuel Capacity | 132.1 gal (500 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00 R 24 x VC |
Transmission
| Transmission Type | Allison CLBT 754 Automatic |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
