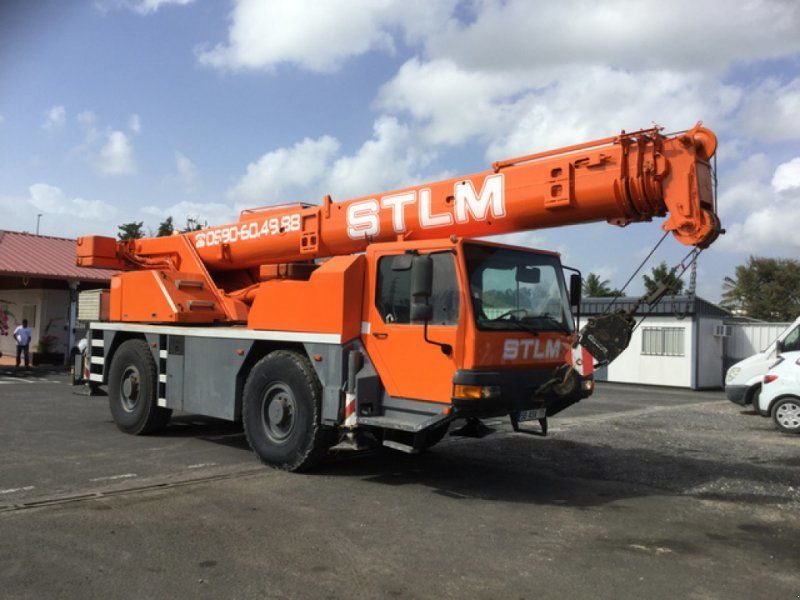

Liebherr LTM1030/2
Browse All Liebherr or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 30.19 ft in (9.2 m) |
| Max Height @ Max Raise Angle - No Jib | 98.43 ft in (30 m) |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 32.93 ft in (10035 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 11.65 ft in (3550 mm) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Width W/ Outriggers Extended | 19.69 ft in (6000 mm) |
| Carrier Length | 27.5 ft in (8380 mm) |
| Upper Structure Tail Swing Radius | 10.34 ft in (3150 mm) |
Carrier Engine
| Make | Liebherr |
| Model | OM 906 LA |
| Gross Power | 275 hp (205 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 811.4 lb ft (1100 Nm) |
| Torque Measured @ | 1500 rpm |
Operational
| Carrier Fuel Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00 R 25 |
Transmission
| Transmission Type | ZF Powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
