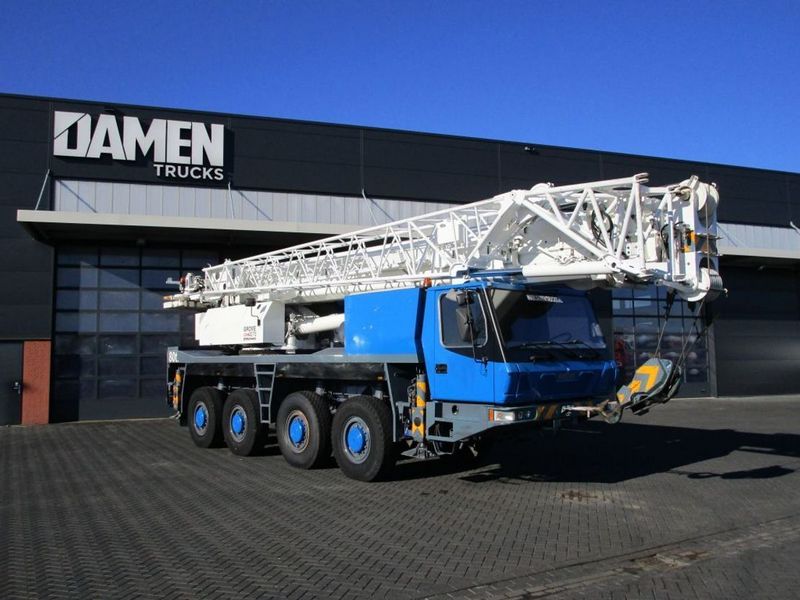

Grove GMK4075
Browse All Grove or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 36.75 ft in (11.2 m) |
| Max Height @ Max Raise Angle - No Jib | 141.74 ft in (43.2 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 41.98 ft in (12795 mm) |
| Transport Width | 8.37 ft in (2550 mm) |
| Transport Height | 12.46 ft in (3795 mm) |
| Width W/ Outriggers Extended | 22.97 ft in (7000 mm) |
| Carrier Length | 33.82 ft in (10308 mm) |
| Upper Structure Tail Swing Radius | 11.57 ft in (3525 mm) |
Carrier Engine
| Make | Grove |
| Model | OM501LA |
| Gross Power | 422.5 hp (315 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1475.2 lb ft (2000 Nm) |
| Torque Measured @ | 1080 rpm |
Operational
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 105.7 gal (400 L) |
| Upper Structure Hydraulic System Fluid Capacity | 179.7 gal (680 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 14.00 R25 |
Transmission
| Transmission Type | ZF-AS TRONIC automatic |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 2 |
