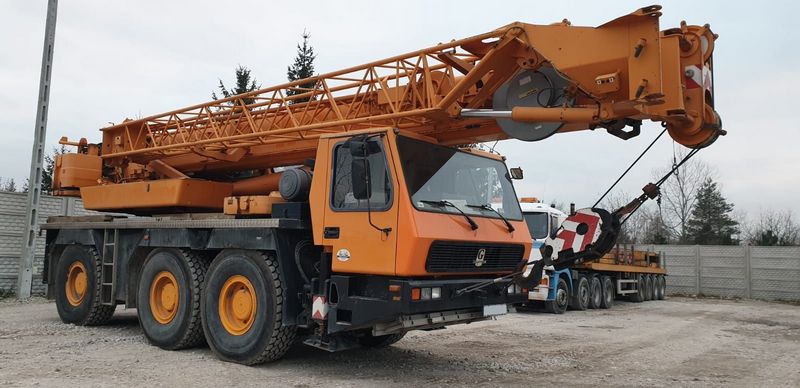

Grove GMK3050A
Browse All Grove or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 32 ft in (9.76 m) |
| Max Height @ Max Raise Angle - No Jib | 125 ft in (38.1 m) |
| Min Working Radius | 28.55 ft in (8.7 m) |
| Max Working Radius | 49.22 ft in (15 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 30000.07 lb (13607.8 kg) |
| Swing Speed | 2.5 rpm |
Dimensions
| Transport Length | 36.21 ft in (11033.76 mm) |
| Transport Width | 9.5 ft in (2895.6 mm) |
| Transport Height | 11.5 ft in (3505.2 mm) |
| Wheelbase | 13.11 ft in (3995.93 mm) |
| Ground Clearance | 3.12 ft in (950 mm) |
| Width W/ Outriggers Extended | 20.4 ft in (6217.92 mm) |
| Carrier Length | 27.7 ft in (8442.96 mm) |
| Upper Structure Tail Swing Radius | 10.6 ft in (3230.88 mm) |
Carrier Engine
| Make | Grove |
| Model | Mercedes-Benz OM501LA |
| Gross Power | 348.7 hp (260 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1276 lb ft (1730 Nm) |
| Torque Measured @ | 1080 rpm |
| Number Of Cylinders | 6 |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 23148.6 lb (10500 kg) |
| Carrier Hydraulic System Fluid Capacity | 158.6 gal (600 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 20.5 R25 |
Transmission
| Transmission Type | Allison automatic MD 3066 P |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 53 mph (85.3 km/h) |
