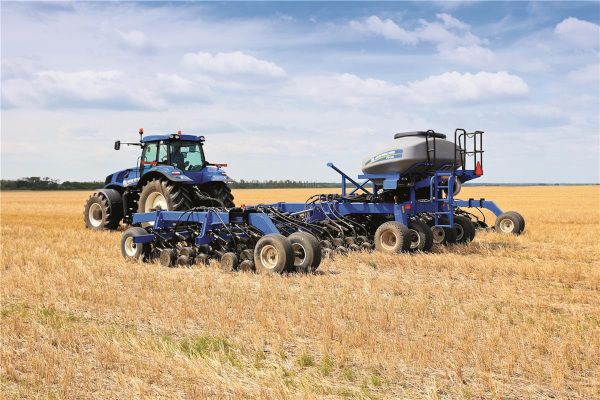

New Holland P2085 - 30 ft
Browse All New Holland or Air Drill Models
Contents:
Dimensions
| Transport Width | 12 ft in (3.66 m) |
| Transport Height | 12.92 ft in (3938.02 mm) |
| Number Of Row Units 7.5" Spacing | 48 |
| Road-To-Opener Clearance, | 8.5 in (21.59 cm) |
| Available Spacing | 10 in (25.4 cm) |
| Toolbar Width | 30 ft in (9.15 m) |
| Split Rank Capability | 20 in (50.8 cm) |
| Number Of Row Units 10" Spacing | 36 |
Engine
| Fold Type | Single |
| Mounted Tank | Standard |
| Mounted Seed Tank Capacity, Bushels (L) | 70 (2470) |
| Wing Sections | 3 |
| Operating Speed | 8 mph (12.9 km/h) |
| Ground Following Design | Parallel link |
| Display System | Intelliview IV or ISO11783 compliant display |
| Sectional Control | 2-section standard with 4-section optional |
| Blockage Monitoring | Standard |
| Row Unit Travel From Level Surface Down | 8.5 in (21.6 cm) |
| Row Unit Travel From Level Surface Up | 11.5 in (29.3 cm) |
| Wing Flex Up | 15 degrees |
| Wing Flex Down | 10 degrees |
| Disks | 18 in (45.8 cm) |
| Depth Settings | 14 position T-handle adjust from 0 to 3.5 (8.9) |
| Down Pressure Adjustment | Variable spring |
Weights
| Weight 7.5 " Spacing (Empty) | 21164.4 lb (9600 kg) |
| Weight 10 " Spacing (Empty) | 19180.3 lb (8700 kg) |
| Closing Wheel Variable Packing Pressure, Lbs | 85 lb (38.6 kg) |
| Standard In-Cab Down Pressure Control | 1400 lb (635.1 kg) |
Tires
| Tires Total | 12 Standard and 16 optional |
| Center Section Walking Beam Castor Tires | 12.5L x15 |
| Rear Mainframe Dual Walking Beam Tire Size | 18L x 16.1 |
| Inner And Outer Wings Walking Beam Castor Tire Size | 12.5L x15 |
Hydraulic System
| Hydraulic Requirements | 30.2 gal/min (114 L/min) |
| Hydraulic System | In cab down pressure adjust standard |
3-Point Hitch
| Length With Rear Hitch (Pin To Pin) | 36.4 ft in (11.1 m) |
| Minimum Tractor Pto Hp Required 7.5" Spacing | 195 |
| Minimum Tractor Pto Hp Required 10 Spacing | 145 |
| Minimum Tractor Pto Hp Required 7.5 Spacing With Air Cart | 260 to 295 |
| Minimum Tractor Pto Hp Required 10 Spacing With Air Cart | 210 to 245 |
| Hitch Type | Floating |
