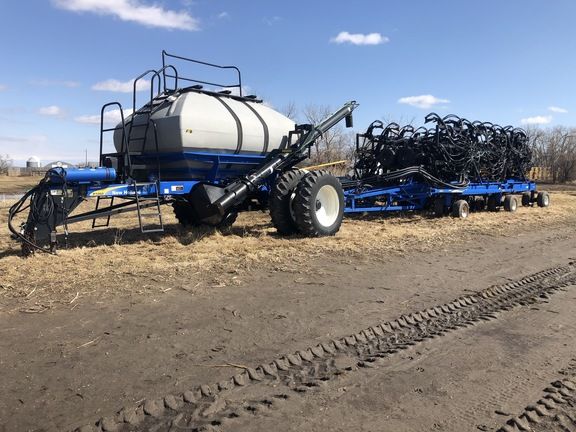

New Holland P2060 AIR DRILL
Browse All New Holland or Air Drill Models
Contents:
Dimensions
| Basic Weight, Maximum | 36411.55 lb (16516 kg) |
| Basic Weight, Minimum | 31094 lb (14104 kg) |
| Number Of Furrows, Maximum | 96 |
| Number Of Furrows, Minimum | 60 |
| Transport Height- Maximum | 13.46 ft in (4.1 m) |
| Transport Height- Minimum | 13.46 ft in (4.1 m) |
| Transport Width- Maximum | 17.72 ft in (5.4 m) |
| Transport Width-Minimum | 17.72 ft in (5.4 m) |
| Variants Available | 5 |
| Working Width- Maximum, | 69.89 ft in (21.3 m) |
| Working Width- Minimum | 60.04 ft in (18.3 m) |
Tires And Frame
| Center Frame Tire Size Min | 11 x 15FI |
Primary Opener Assembly
| Opener Type | Conventional single pivot spring trip hoe |
Frame Mounted Press Wheels
| Frame Mtd. Press Wheels - Width Range | 6.5 in (165.1 mm) |
Configuration
| Seeding Method | Min-Till / Conventional Till hoe |
Sales Literature
| Literature Number | PLA-41005-08 |
| Literature Date | 04 - 2008 |
Configuration
| Row Spacings | 12 in (304.8 mm) |
Primary Opener Assembly
| Depth Gauging System | Fixed to frame |
Tires And Frame
| Center Frame Tire | 12.5 x 15FI |
Frame Mounted Press Wheels
| Frame Mtd. Press Wheels - Wheel / Tire Description | Steel Wheel or Semi-pneumatic Tire |
Tires And Frame
| Wing Frame Tire Size Min | 11 x 15FI |
Primary Opener Assembly
| Opener-Mounted Press Wheel Description | See Frame-Mounted Press Wheels |
Configuration
| Seed Supply | Air cart |
Tires And Frame
| Wing Frame Tire | 12.5 x 15FI |
Configuration
| Frame Sections & Transport Folding Method | rear fold |
Tires And Frame
| Frame Height Control | Hydraulic |
| Number Of Ranks | 4 |
Primary Opener Assembly
| Trip Load | 549 lb (249 kg) |
| Type Of Fertilizer Delivery | Single/double shoot |
Tires And Frame
| Under Frame Clearance | 32 in (812.8 mm) |
