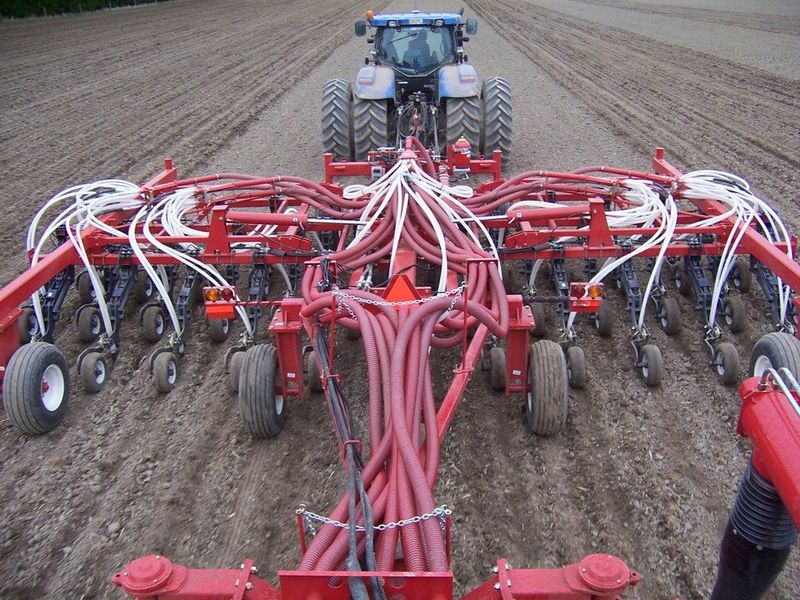

Morris Contour Drill 41'
Contents:
Frame Widths
| Transport Length | 31.5 ft in (9.6 m) |
| Transport Width | 20.51 ft in (6.25 m) |
| Transport Height | 15.16 ft in (4.62 m) |
| Inner Wing | 12.01 ft in (3.66 m) |
| Main Frame | 16.02 ft in (4.88 m) |
Base Size
| Base Width | 41 ft in (12.5 m) |
| Number Of Ranks | 3 |
| Rank To Rank Spacing | 47.1 in (119.4 cm) |
| Frame Depth | 94.1 in (238.8 cm) |
| Minimum Ground Clearance | 31.9 in (81 cm) |
Working Width
| 10 In Spacing | 41.7 ft in (12.7 m) |
| 12 In Spacing | 41.1 ft in (12.5 m) |
Number Of Shanks
| 10 In Spacing | 50 |
| 12 In Spacing | 41 |
Weights
| 10 In Spacing | 20877.8 lb (9470 kg) |
| 12 In Spacing | 19524.2 lb (8856 kg) |
Tires
| Main Frame Casters | (8) 11Lx15 FI Load Range F |
| Inner Wing Casters | (2) 11SL x15 |
| Outer Wing Casters | (2) 11SL x15 |
